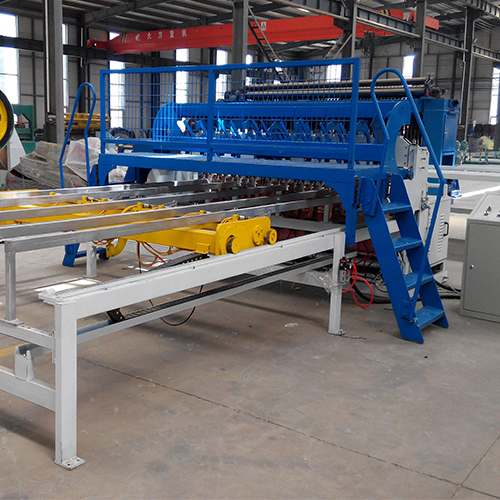

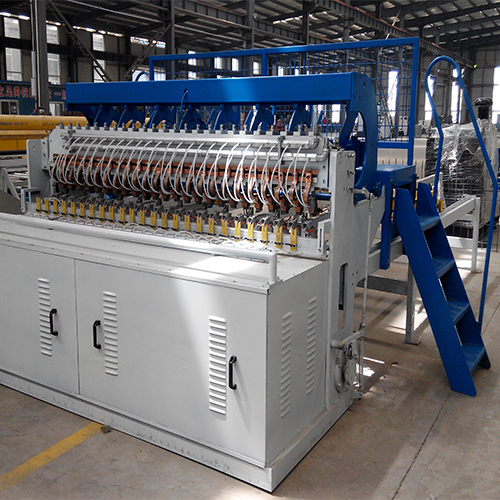

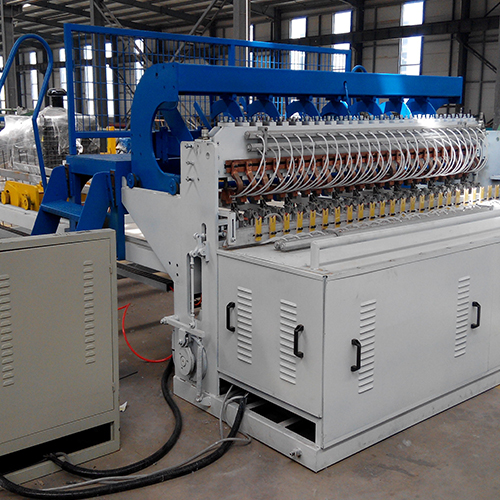

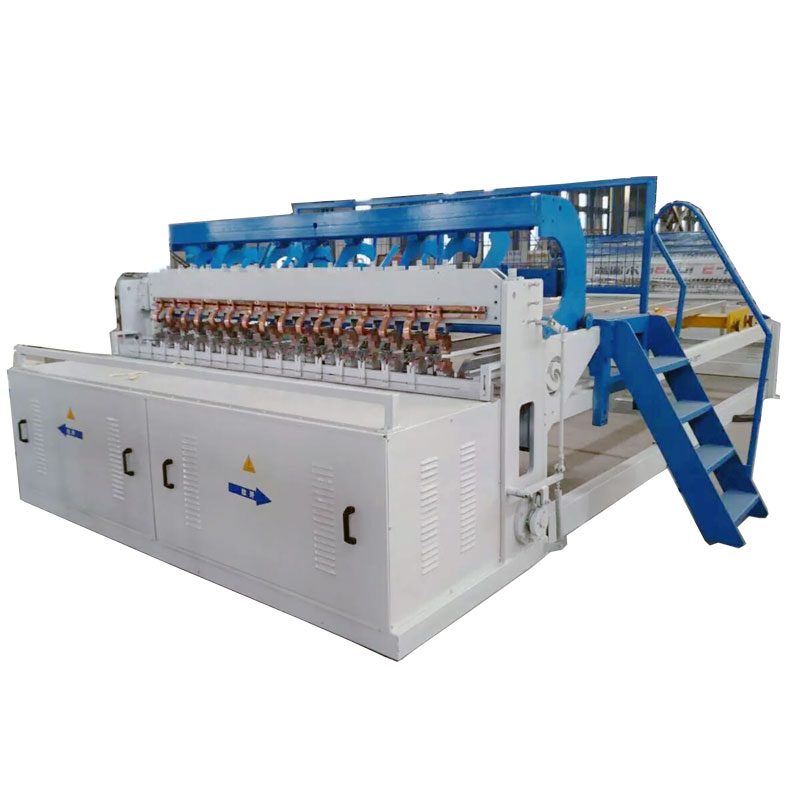

Reinforcing Mesh Welding Machine introduction:
5-8mm reinforcing mesh welding machine adopts electrical and electronic synchronous control technique. The cent-control and welding time are composed of PLC program system.
5-8mm reinforcing mesh welding adopts new high-efficient welding type transformer, which expands welding scope of wire diameter. Each welding transformer can be adjusted seperately.
Adopts water-cooling system in electrodes, prolong their service life.
Auto cycling mesh pulling system is controlled by servo motor, not only improving the precision of mesh size, but also assuring adjustment of wire space.

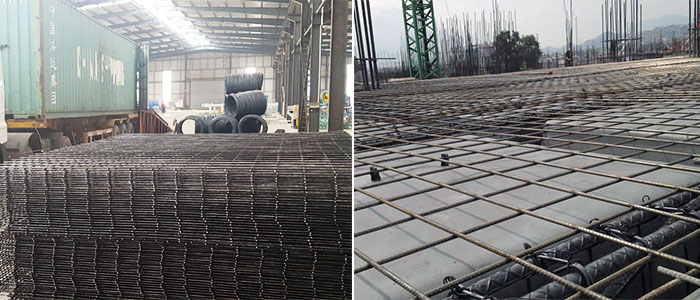

Reinforcing Mesh Welding Machine Final mesh product:
Welded concrete reinfocing mesh sheet.
Reinforcing Mesh Welding Machine application:
5-8mm reinforcing mesh welding machine is to produce construction mesh, bridge mesh, high-way reinfocement mesh, construction reinforcement mesh and floor pouring mesh.
Main parameter:
Wire diameter | 5-8mm | Welding width | ≤2500mm / customized |
Line wire space | 100-300mm | Cross wire space | 100-300mm |
Line wire feed | Pre straighten, cut to length | Cross wire feed | Pre straighten, cut to length |
Electrodes no. | 26 | Welding speed | 30-50 times/min |
Rated voltage | 380V 3Ph 50Hz / customized | Machine weight | 5.0T |
