1.5-2.4mm EPS Panels Mesh Welding Machine

1.4-2.5mm ESP panels mesh welding machine adopts electrical and electronic synchronous control technique. Controlled by PLC, welding time and sub-control are quite accurate.

Quantity:

ESP Panels Mesh Welding Machine introduction:

1.4-2.5mm ESP panels mesh welding machine adopts electrical and electronic synchronous control technique. Controlled by PLC, welding time and sub-control are quite accurate. Stable performance, firm welding spots, little burned mark and easily operation are advantages of ESP panels mesh welding machine.

The cross wire feeding part is fitted with accurate cutting device and accurate positioning device, which ensure cross wire cut at the same length and no need trim.

The mesh drawing adopts the elastic bars and grid positioning device. It makes the grid size easily to fine-tuning. The mesh size is in high precision and the welding aperture can be adjusted freely within the range.

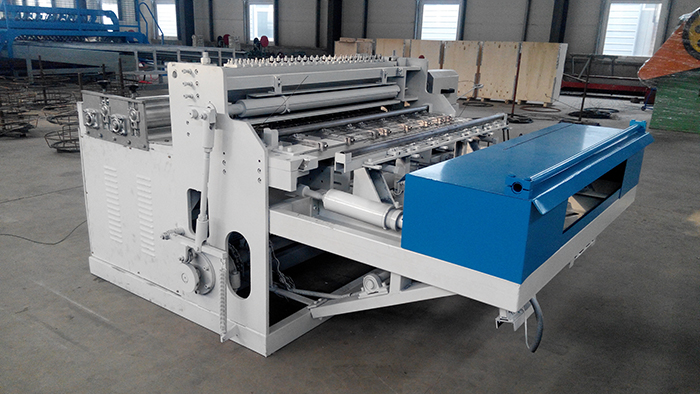

1.5-2.4mm-ESP-Panels-Mesh-Welding-Machine1

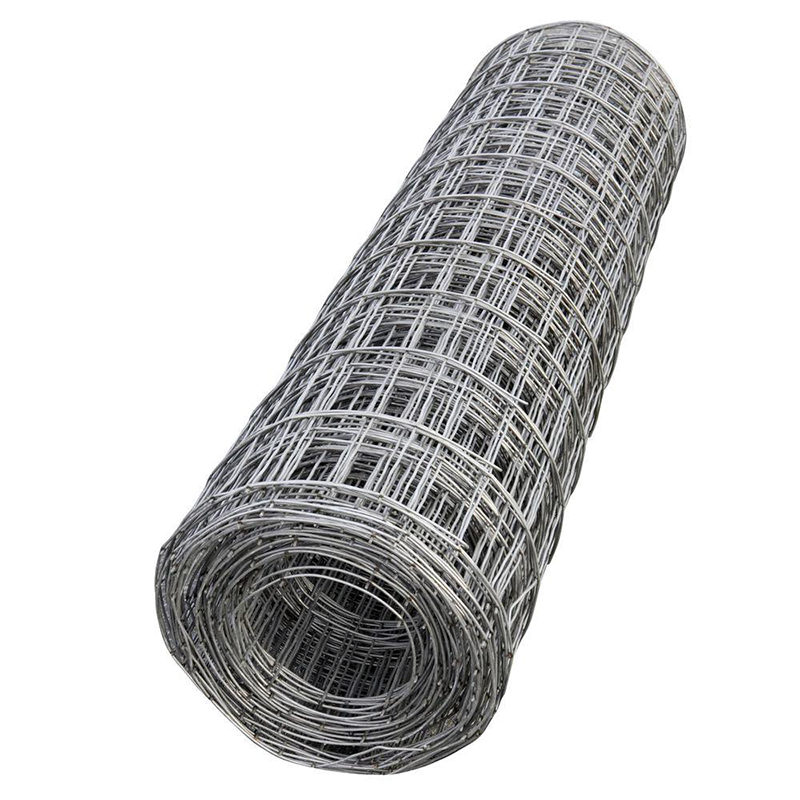

ESP Panels Mesh Welding Machine Final mesh product:

Welded wire mesh in roll or sheet.

ESP Panels Mesh Welding Machine application:

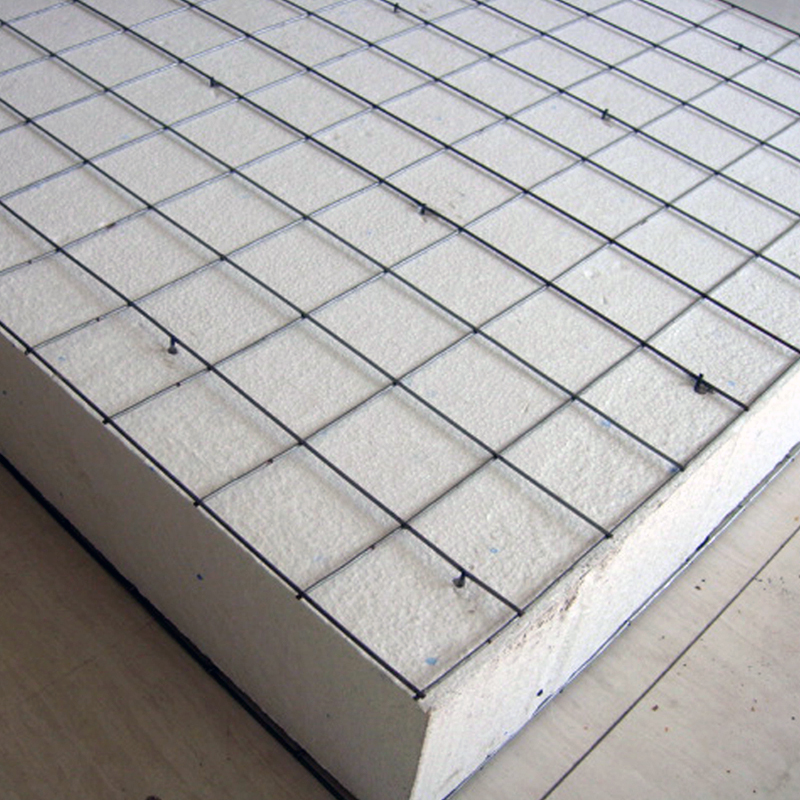

1.4-2.5mm ESP panels mesh welding machine is to produce mesh used in fencing, casting building roof, esp mesh panels, floor heating, seedbed, greenhouse and animals' net.

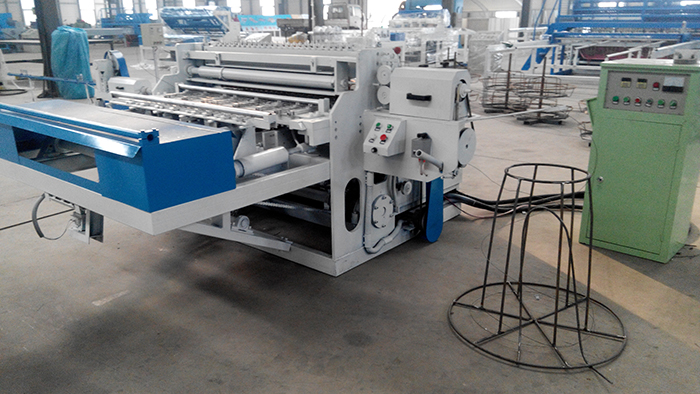

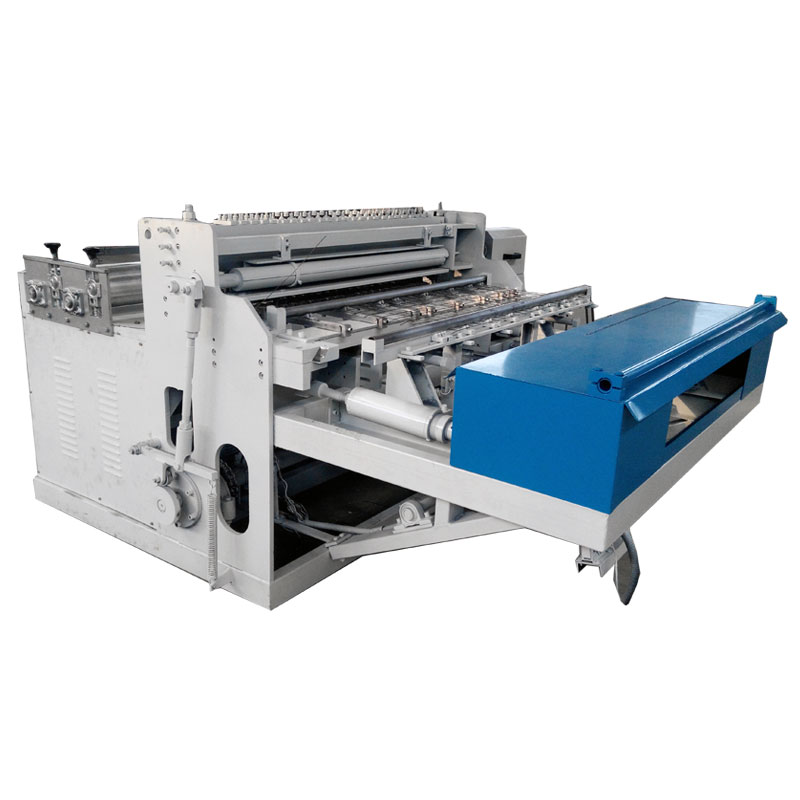

1.5-2.4mm-ESP-Panels-Mesh-Welding-Machine

ESP Panels Mesh Welding Machine Main parameter:

Welding wire diameter

1.4-2.5mm;

2.3-3.0mm

Welding mesh width

≤1200mm

Line wire space

50-200mm

Cross wire space

50-200mm

Line wire feed

Coil

Cross wire feed

Coil

Electrodes no.

25

Welding speed

60 times/min

Rated voltage

380V 3Ph 50Hz

/ customized

Machine weight

2.0T

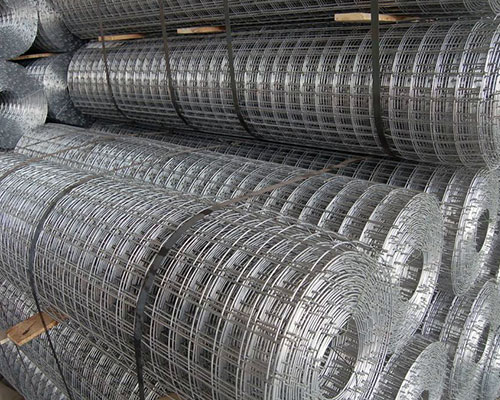

ESP Panels Mesh Welding Machine Final mesh product

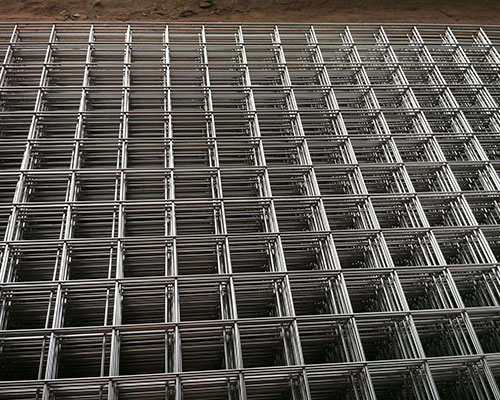

ESP Panels Mesh Welding Machine Final mesh product
