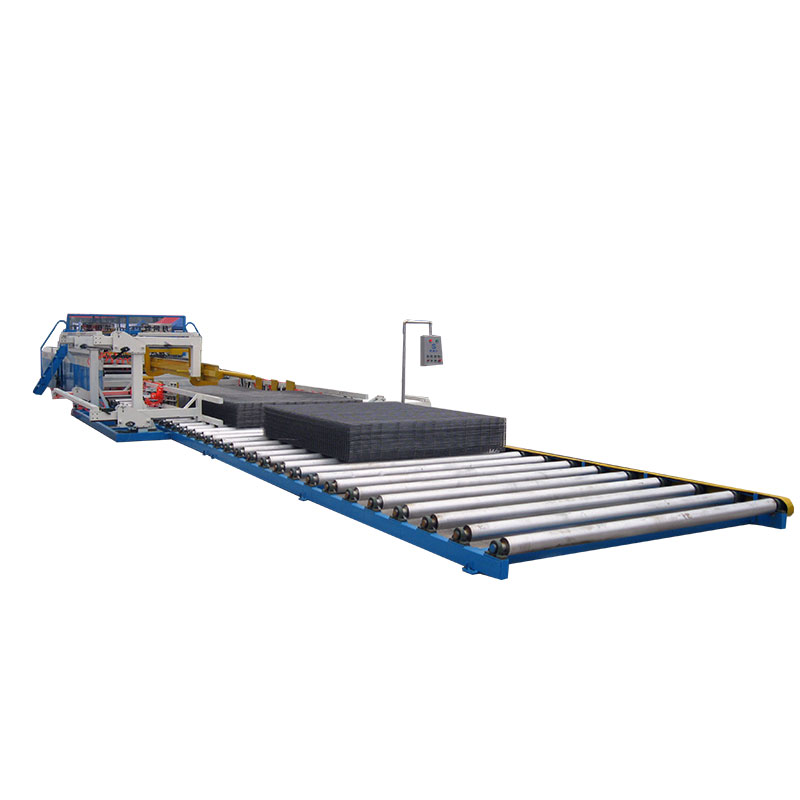

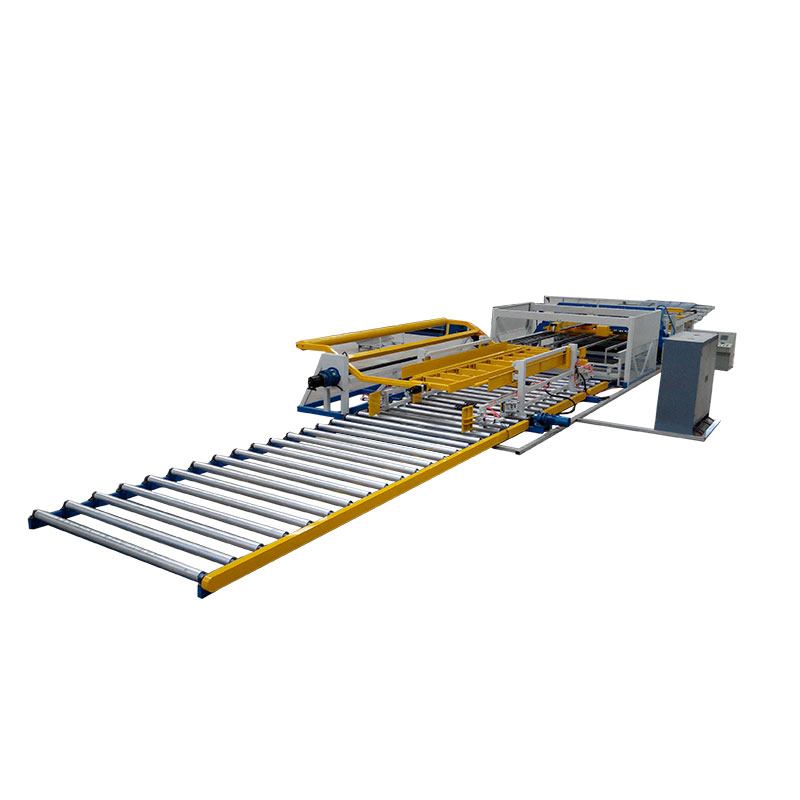

Fully Auto Wire Mesh Welding Machine introduction:
2.5-5mm fully auto wire mesh welding machine adopts electrical and electronic synchronous control technique. Controlled by PLC, welding time and sub-control are quite accurate.
Two kinds of input methods, touch screen and keyboard, make operation more intelligentize and reasonable.
The biggest advantage of this system is more than 30 different mesh sizes can appear on same sheet.
New and high efficient welding transformer expands welding scope of wire diameter.
This fully automatic welding machine with high-automatization, saves much labor and achieves perfecting welding.
Fully Auto Wire Mesh Welding Machine Performance characteristics:
1. Line wires are inserted manually or automatically, feed automaticly and fastly. Feeding
position is accurate.
2. The cross wire feeding from the hopper automatically, in accurate feeding positon.
3. Wire mesh panel is pulled by the servo motor automatically back and forth.
4. Secondary mesh pulling unit, pulls mesh panels to mesh collecting part fastly.
5. Turn and flip the panel over automatically, largely save room.
6. Stack the panels automatically.
7. Motor driven roller unit carryies panels out automatically when panels stacked in a certain quantity.

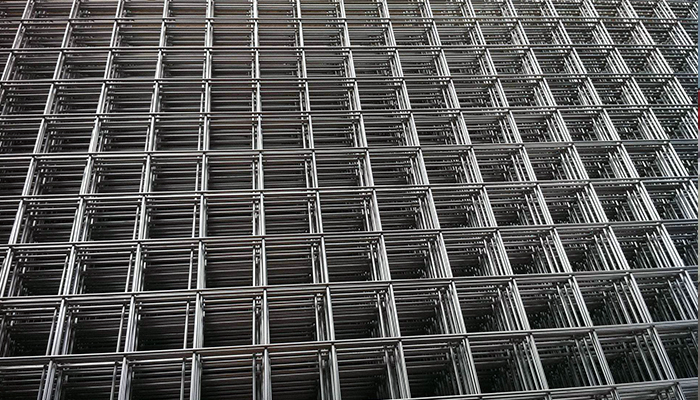

Fully Auto Wire Mesh Welding Machine Final mesh product:
Welded wire mesh sheet.

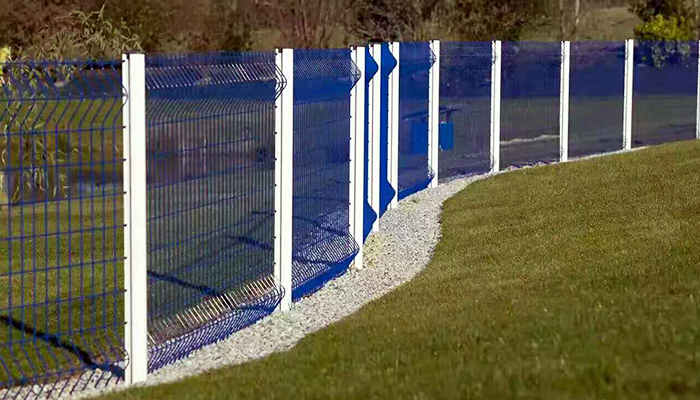

Fully Auto Wire Mesh Welding Machine application:
2.5-5mm fully auto wire mesh welding machine is to produce welded wire mesh panel for fence and construction.
Fully Auto Wire Mesh Welding Machine Main parameter:
Welding wire diameter | 2.5-5.0mm | Welding mesh width | 2500mm / customized |
Line wire space | 50-200mm | Cross wire space | 50-200mm |
Line wire feed | Pre straighten, cut to length | Cross wire feed | Pre straighten, cut to length |
Line wire feed | Auto | Mesh pulling | Auto |
Electrodes no. | 48/ accordingly | Welding speed | 40-60 times/min |
Rated voltage | 380V 3Ph 50Hz / customized |
