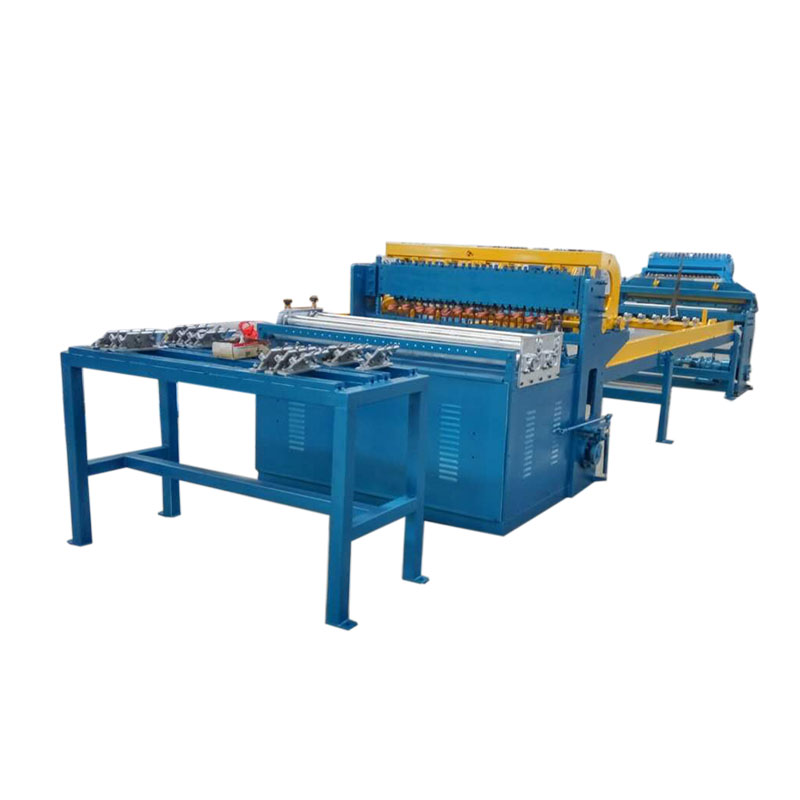

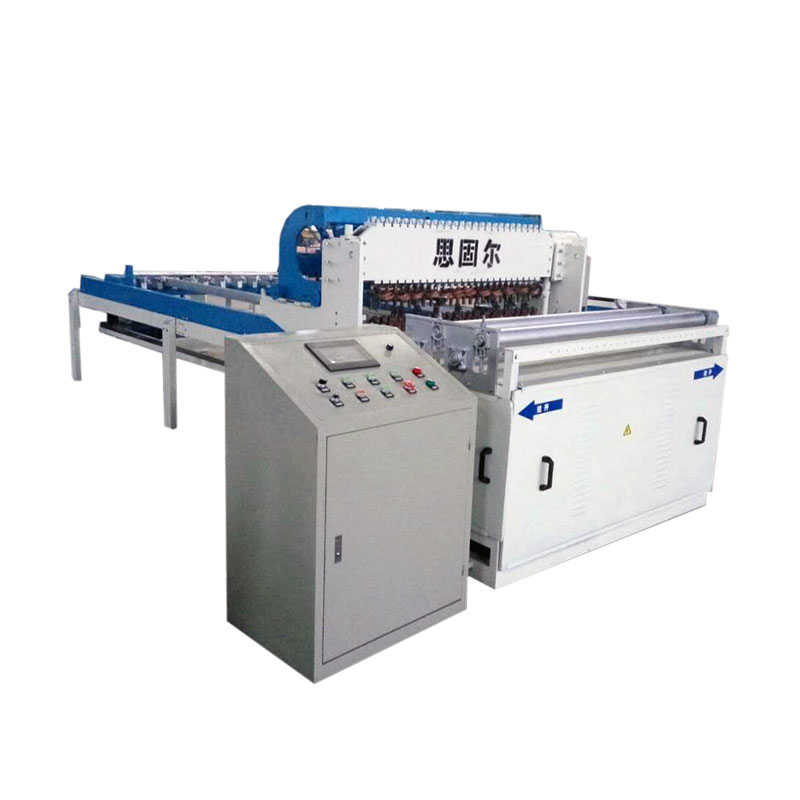

Animal Cage Wire Mesh Welding Machine introduction:
Animal cage wire mesh welding machine adopts electrical and electronic synchronous control technique. Controlled by PLC, welding time and sub-control are accurate. Two kinds of input methods, touch screen and keyboard, make operation more intelligentize and reasonable.
Cross wire drops from hopper automatically. Dropping positon is accurate.
Line wires feed from coils. High-speed roller type straightening machine made line wires straighten.
Mesh pulling driven by servo motor, pull the panel back and forth, pneumatic lock the cross wire, ensure position accurate.

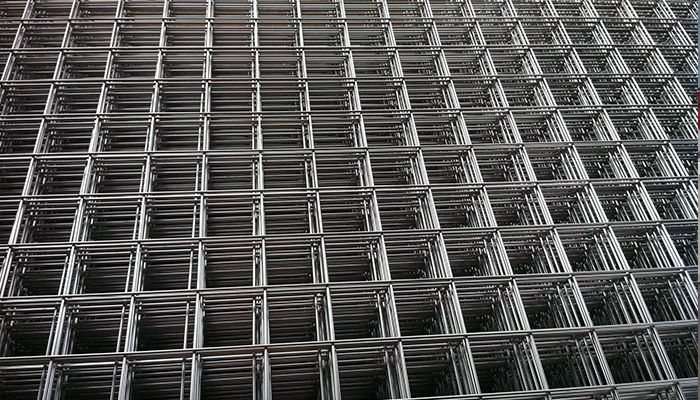

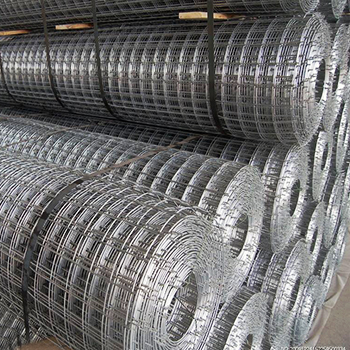

Animal Cage Wire Mesh Welding Machine Final mesh product:
Welded roll mesh or mesh sheet.

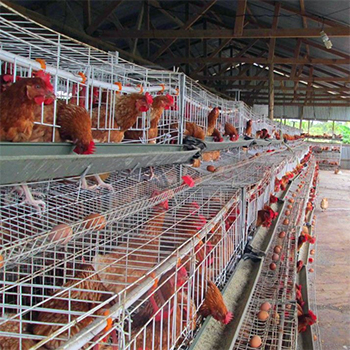

Animal Cage Wire Mesh Welding Machine application:
Animal cage wire mesh welding machine is to produce construction mesh and cage mesh for chicken, bare, marten, fox and pet.
Animal Cage Wire Mesh Welding Machine Main parameter:
Welding wire diameter | 2.0-3.2mm | Welding mesh width | ≤1200mm / customized |
Line wire space | 25-200mm | Cross wire space | 25-200mm |
Line wire feed | Coil | Cross wire feed | Pre straighten, cut to length |
Electrodes no. | 25 | Welding speed | 40-60 times/min |
Rated voltage | 380V 3Ph 50Hz / customized | Control system | PLC |
 |  |
 | |
