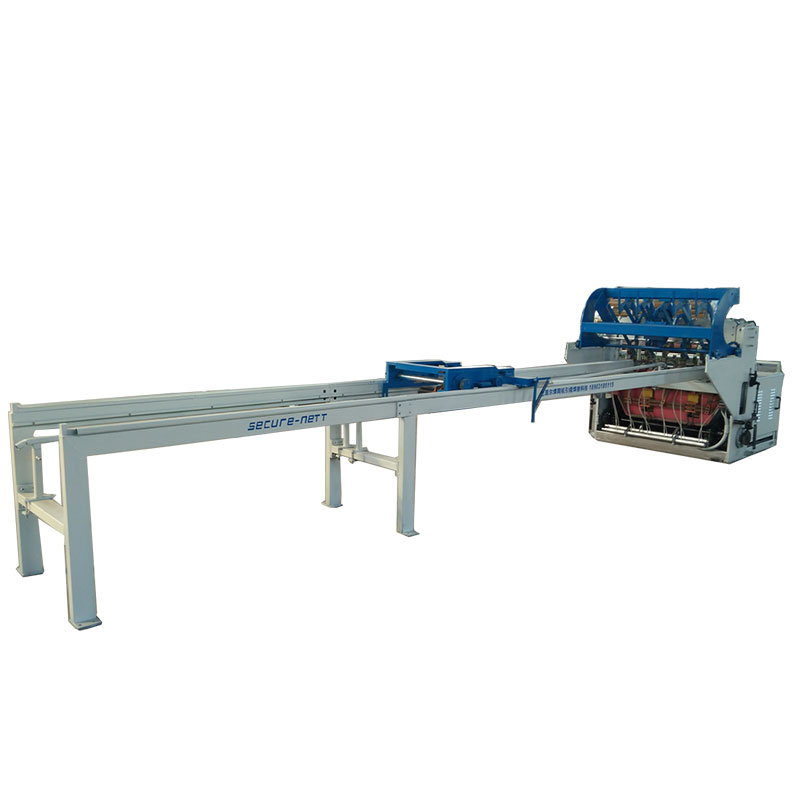

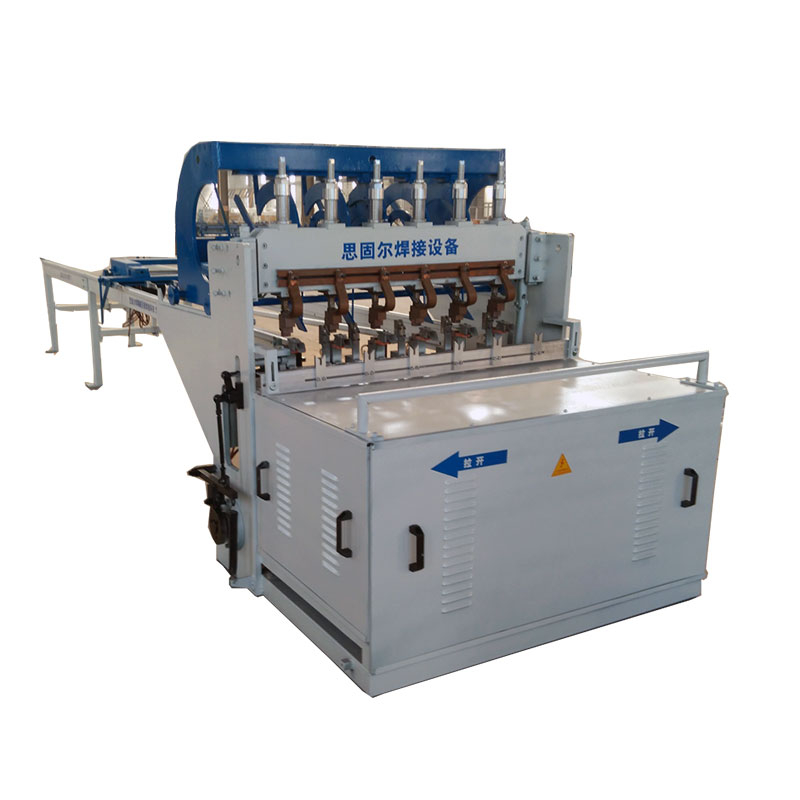

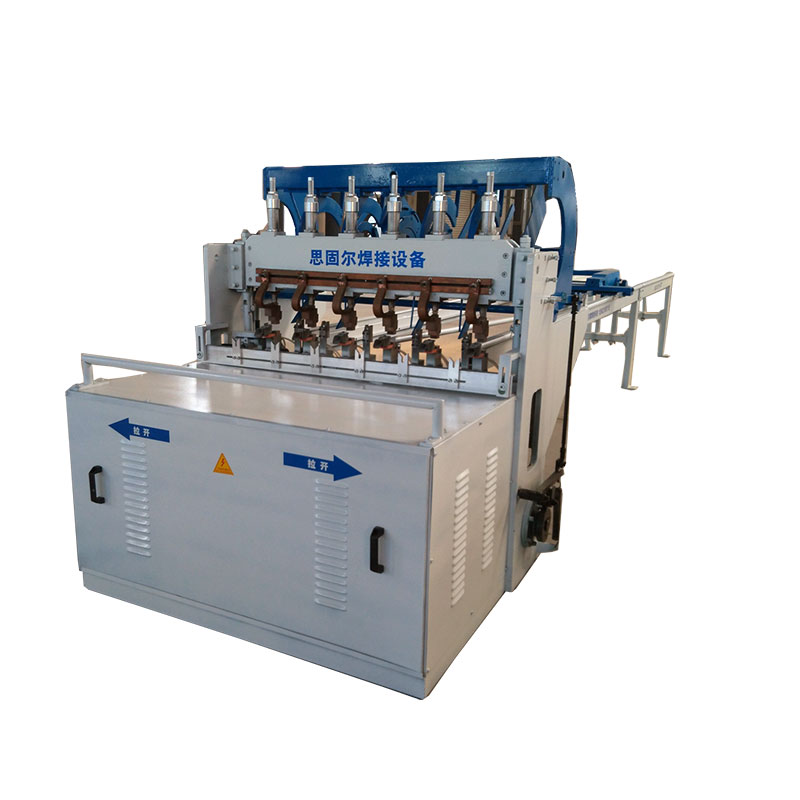

Welded Mesh Panel Machine introduction:
5-8mm welded mesh panel machine adopts electrical and electronic synchronous control technique. The cent-control and welding time are composed of PLC program system.
5-8mm welded mesh panel machine adopts new high-efficient welding type transformer, which expands welding scope of wire diameter. Each welding transformer can be adjusted seperately.
Auto cycling mesh pulling system is controlled by servo motor, not only improving the precision of mesh size, but also assuring adjustment of wire space.

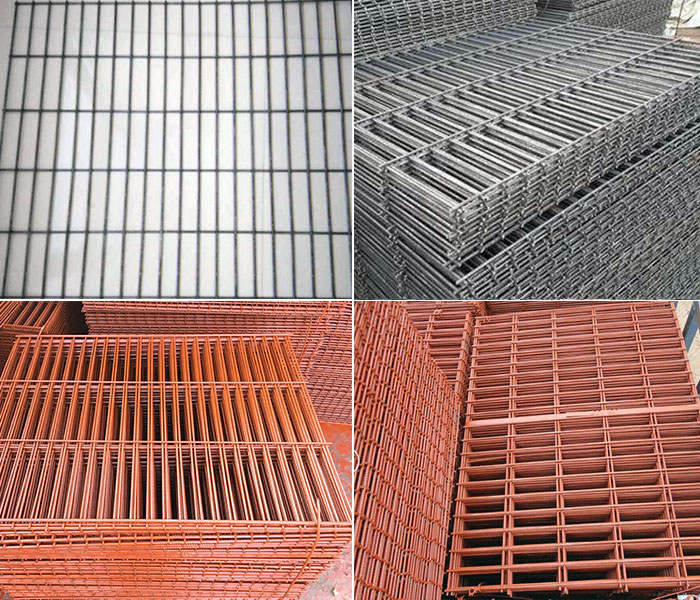

Welded Mesh Panel Machine Final mesh product:
Welded mesh panel
Welded Mesh Panel Machine application:
5-8mm welded mesh panel machine is to produce footplate of scaffold and welded mesh panel.
Welded Mesh Panel Machine Main parameter:
Wire diameter | 5-8mm | Welding width | 1000mm |
Line wire space | 100-300mm | Cross wire space | 100-300mm |
Line wire feed | Pre straighten, cut to length | Cross wire feed | Pre straighten, cut to length |
Electrodes no. | 6 | Welding speed | 30-50 times/min |
Rated voltage | 380V 3Ph 50Hz / customized | Machine weight | 5.0T |
