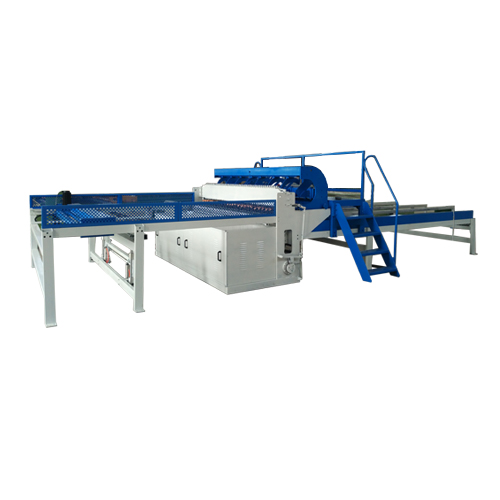

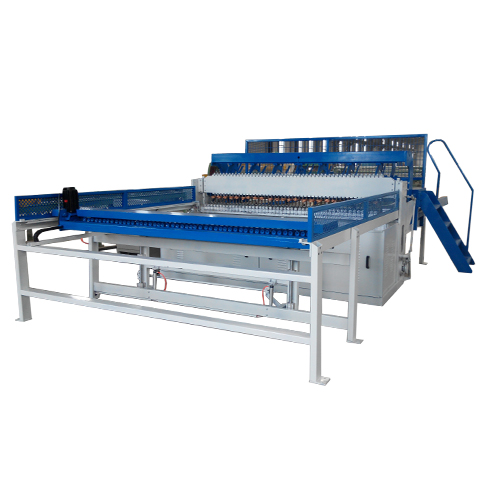

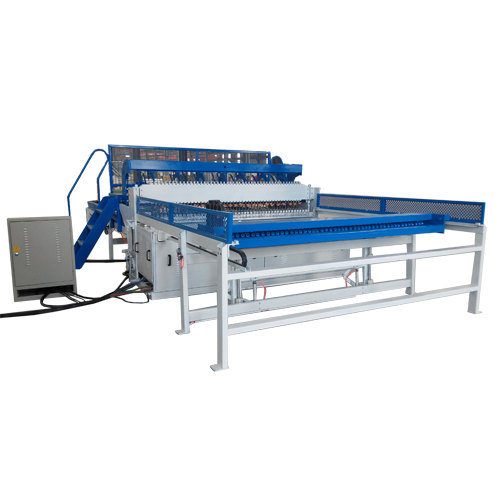

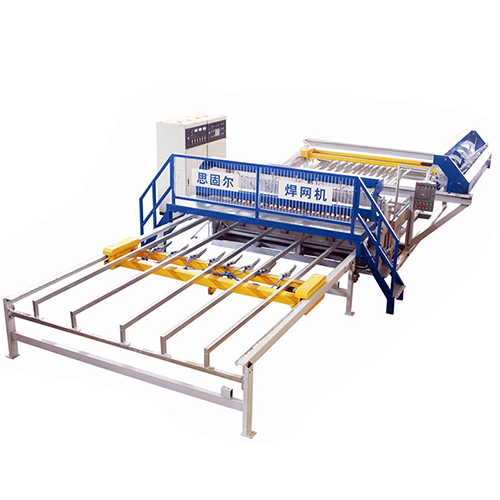

New CNC Wire Mesh Welding Machine introduction:
2.5-5mm new CNC wire mesh welding machine adopts electrical and electronic synchronous control technique. Controlled by PLC, welding time and sub-control are quite accurate.
Two kinds of input methods, touch screen and keyboard, make operation more intelligentize and reasonable.
The biggest advantage of this system is more than 30 different mesh sizes can appear on same sheet.
New and high efficient welding transformer expands welding scope of wire diameter.
Easy operation, high flexibility and output achieve a perfect welding machine.
2.5-5mm New CNC Wire Mesh Welding Machine Performance characteristics:
1. Each welding transformer is controlled by seperate microcomputer. Once press with multiple welding. Over 30 different mesh sizes can appear on same sheet.
2. Welding electrodes choose high quality CuCrZr, extending service life and cutting down cost.
3. Line wires feed automaticly and fastly. Feeding position is accurate.
4. Cross wires feed automaticly. Feeding position is accurate.
5. Mesh is pulled automaticly and driven by servo motor. Pulling position is accurate.

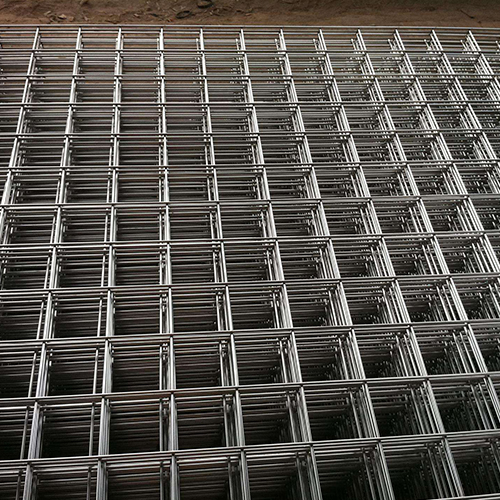

New CNC Wire Mesh Welding Machine Final mesh product:
Welded wire mesh sheet.
New CNC Wire Mesh Welding Machine application:
2.5-5mm new CNC wire mesh welding machine is to produce welded wire mesh panel for fence and construction.
New CNC Wire Mesh Welding Machine Main parameter:
Wire diameter | 2.5-5.0mm | Welding width | 2500mm / customized |
Line wire space | 50-200mm | Cross wire space | 50-200mm |
Line wire feed | Pre straighten, cut to length | Cross wire feed | Pre straighten, cut to length |
Line wire feed | Auto feed | Mesh pulling | Auto |
Electrodes no. | 48 | Welding speed | 40-60 times/min |
Rated voltage | 380V 3Ph 50Hz / customized | Machine weight | 4.5T |
New CNC Wire Mesh Welding Machine introduction:
2.5-5mm new CNC wire mesh welding machine adopts electrical and electronic synchronous control technique. Controlled by PLC, welding time and sub-control are quite accurate.
Two kinds of input methods, touch screen and keyboard, make operation more intelligentize and reasonable.
The biggest advantage of this system is more than 30 different mesh sizes can appear on same sheet.
New and high efficient welding transformer expands welding scope of wire diameter.
Easy operation, high flexibility and output achieve a perfect welding machine.
2.5-5mm New CNC Wire Mesh Welding Machine Performance characteristics:
1. Each welding transformer is controlled by seperate microcomputer. Once press with multiple welding. Over 30 different mesh sizes can appear on same sheet.
2. Welding electrodes choose high quality CuCrZr, extending service life and cutting down cost.
3. Line wires feed automaticly and fastly. Feeding position is accurate.
4. Cross wires feed automaticly. Feeding position is accurate.
5. Mesh is pulled automaticly and driven by servo motor. Pulling position is accurate.
New CNC Wire Mesh Welding Machine Final mesh product:
Welded wire mesh sheet.
New CNC Wire Mesh Welding Machine application:
2.5-5mm new CNC wire mesh welding machine is to produce welded wire mesh panel for fence and construction.
New CNC Wire Mesh Welding Machine Main parameter:
Wire diameter | 2.5-5.0mm | Welding width | 2500mm / customized |
Line wire space | 50-200mm | Cross wire space | 50-200mm |
Line wire feed | Pre straighten, cut to length | Cross wire feed | Pre straighten, cut to length |
Line wire feed | Auto feed | Mesh pulling | Auto |
Electrodes no. | 48 | Welding speed | 40-60 times/min |
Rated voltage | 380V 3Ph 50Hz / customized | Machine weight | 4.5T |
