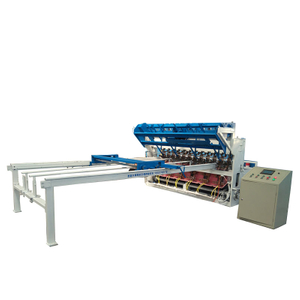

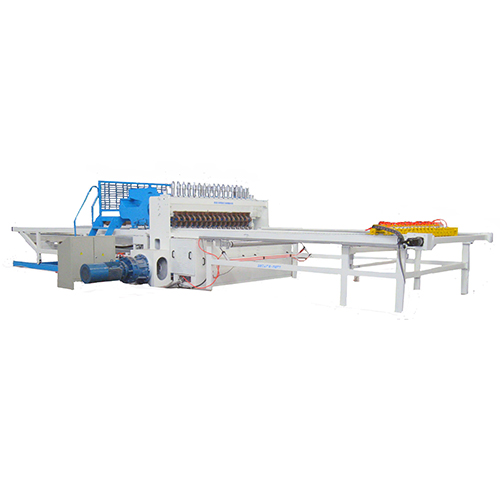

New Reinforcing Mesh Welding Machine introduction:
6-12mm auto reinforcing mesh welding machine adopts electrical and electronic synchronous control technique. The cent-control and welding time are composed of PLC program system.
6-12mm reinforcing mesh welding adopts new high-efficient welding type transformer, which expands welding scope of wire diameter. Each welding transformer can be adjusted seperately.
Auto cycling mesh pulling system is controlled by servo motor, not only improving the precision of mesh size, but also assuring adjustment of wire pitch.
New Reinforcing Mesh Welding Machine Performance characteristics:
1. The line wire and the cross wire are both pre-straightened and cut to length.
2. The cross wire feeding from the hopper automatically. Feeding position is accurate.
3. The line wires are feeding automatically. Feeding position is accurate. Save labor and improve capacity.
4. Mesh panel is pulled back and forth automatically by servo motor, ensuring mesh size accurate. Save labor and improve capacity.
5. Water-cooling transformer prolong its service life and expand the range of welding wire diameter.
6. Adopts water-cooling system in electrodes, prolong service life.
New Reinforcing Mesh Welding Machine Final mesh product:
Welded concrete reinforcing mesh sheet.
New Reinforcing Mesh Welding Machine application:
6-12mm auto reinforcing mesh welding machine is to produce construction mesh, bridge mesh, high-way reinforcement mesh, construction reinforcement mesh, coal mine support net and floor pouring net.
New Reinforcing Mesh Welding Machine Main parameter:
Wire diameter | 6-12mm | Welding width | ≤2500mm / customized |
Line wire space | 100-300mm | Cross wire space | 100-300mm |
Line wire feed | Pre straighten, cut to length | Cross wire feed | Pre straighten, cut to length |
Electrodes no. | 26 | Welding speed | 30-50 times/min |
Rated voltage | 380V 3Ph 50Hz / customized | Machine weight | 12.0T |
