Low-Carbon Reinforcing Rebar Mesh Welding Machine

Views:8     Author:Site Editor     Publish Time: 2018-11-18      Origin:Site Inquire

Low-carbon reinforcing rebar mesh welding machine independently developed by our company is a new type of automatic welding machine with cutting wire feeding for both line and cross, which can increase the function of automatic picking up and feeding for cutting wire feeding.The control system of this reinforcing rebar mesh welding machine consists of main motor control part, welding control part, stepping and falling wire part, servo pulling net part, wire feeding part, landing part and outgoing part.

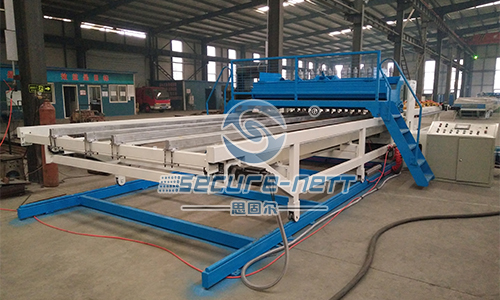

Low-Carbon Reinforcing Rebar Mesh Welding Machine

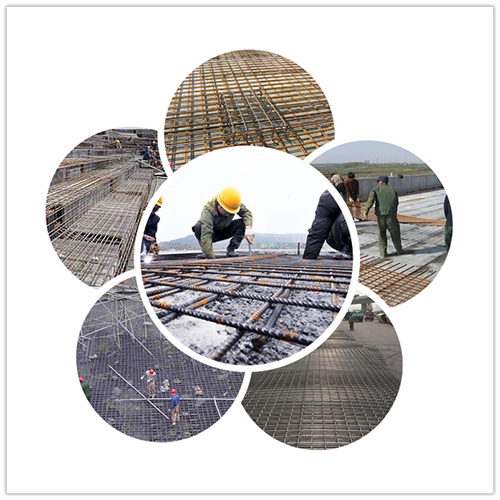

This reinforcing rebar mesh welding machine is widely used in floor, roof, wall, bridge, concrete pavement, platform, airport, cement pipe, concrete prefabricated parts, retaining wall, hillside slope protection, tunnel, wharf, dike and dam of industrial and civil buildings.


99

Parameter of this reinforcing rebar mesh welding machine:

Program

GJW-2000

GJW-2500

GJW-3300

No. of electrodes

20

24

32

Max. Mesh width

2000mm

2500mm

3300mm

Wire diameter

6-12mm

6-12mm

6-12mm

Product length

3-12m

3-12m

3-12m

Cross wire space

100-300mm

100-300mm

100-300mm

Line wire space

100-300mm

100-300mm

100-300mm

Electric capacity

1500KVA

1700KVA

2100KVA

Work speed

30-60times/min.

30-60times/min.

30-60times/min.

Control system

PLC programmable controller

PLC programmable controller

PLC programmable controller

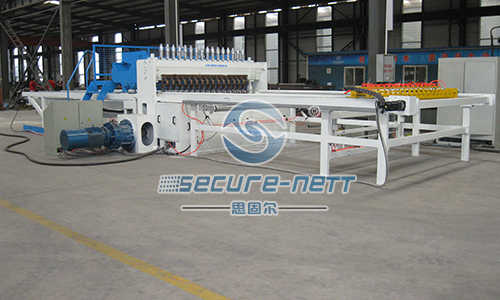

Low-Carbon Reinforcing Rebar Mesh Welding Machine

The series reinforcing rebar mesh welding machine developed by our company has the following advantages:

1. The main frame is made of thick steel plate and welded steel, which makes the main structure more firm and compact.

2. Pneumatic control of line wire feeding mechanism can automatically complete feeding through clamping and loosening of cylinder combined with servo motor to make line wire more even and accurate.

3. The cross wire blanking mechanism has a novel structure. The cross wire can be placed more accurately and conveniently by adding material through ordinary motor and automatically blanking by combining stepping motor with servo motor.

4. Pull net adopts PLC control servo motor dragnet device, so that the size of drawing mesh is more standard and accurate.

5. We have several national patents of this reinforcing mesh welding machine.certificate

quality certificate

Our main products are wire mesh welding machine, reinforcing mesh welding machine, building mesh welding machine, chain link fence machine, steel mesh bending machine,razor barbed wire machine

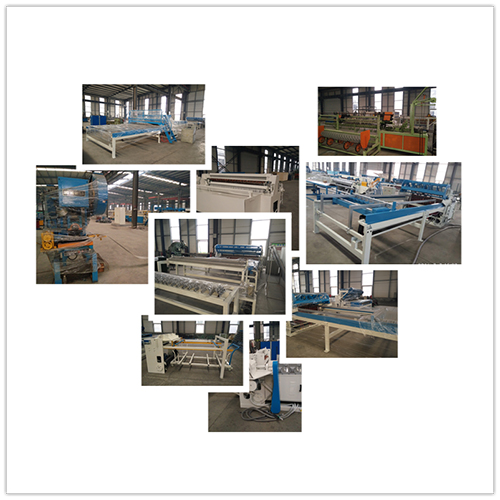

reinforcing mesh welding machine

Advantages of Secure-Net machines:

1. large scale, deep qualification

2. close management and effective after-sales service.

3. product technology is in the process of continuous innovation.

4. standard assembly for mechanical production.

5. research and development of customized equipment

6. product quality is durable.

7. mechanical failure within one year, free maintenance.

8. engineers available to service machinery overseas

 If you have any need, please feel free to contact us.

Welcome to visit our factory!
