For Light Wire Mesh Type HWJX1200, HWJX1500, HWJX2000 and HWJX2500

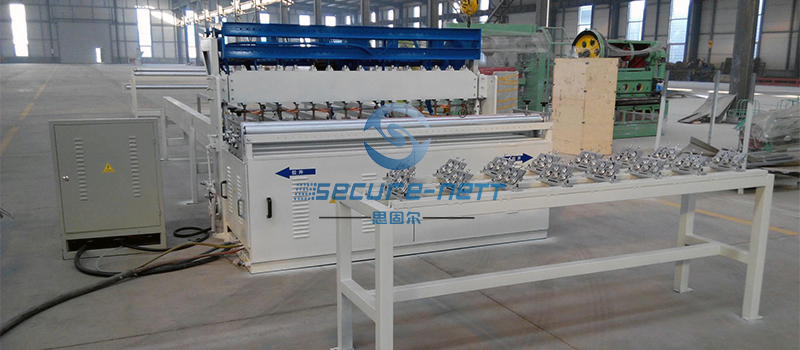

Secure-nett is a leading animal cage hexagonal wire mesh machine exporter of wire mesh welding machinery. The China fully automatic galvanized welded wire mesh machines are well known in the industry. This PLC system wire mesh welding machine is suitable for the production of light welded mesh in rolls or panels.
Technical data | HWJX1200 | HWJX1500 | HWJX2000 | HWJX2500 |
Max mesh width | ≤ 1200 mm | ≤ 1500 mm | ≤ 2000 mm | ≤ 2500 mm |
Mesh length | according to client | according to client | according to client | according to client |
Wire diameter | 2.5–5.0mm | 2.0–3.2mm | 2.0–3.2mm | 2.5–5.0mm |
Number of electrodes | ≤ 25 | ≤ 31 | ≤41 | ≤48 |
Line wire feeding | from coils | from coils | from coils | from coils |
Cross wire feeding | pre-straighten, cut to length | pre-straighten, cut to length | pre-straighten, cut to length | pre-straighten, cut to length |
Line wire space | ≥25mm | ≥25mm | ≥25mm | ≥25mm |
Cross wire space | ≥25mm | ≥25mm | ≥25mm | ≥25mm |
Control system | PLC | PLC | PLC | PLC |

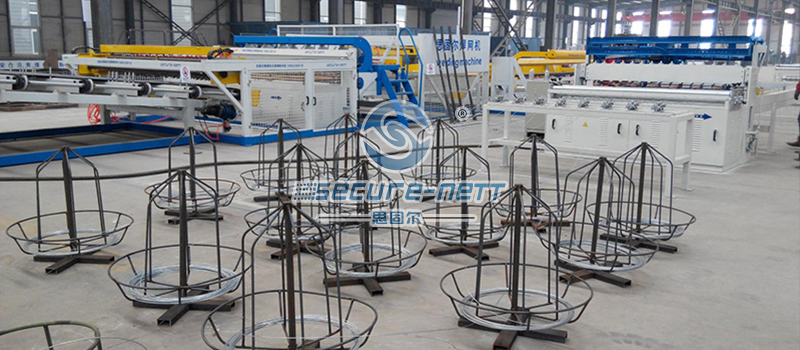

Final mesh product
Usage of hot dipped galvanized welded wire mesh roll machine
★Cages for breeding and keeping animals
★Mesh for cages
★Light weight mesh or fence mesh
★Transport containers
★Floor pavement screens
★Mesh boxes and containers
★Plaster mesh
★Baskets for gravel trench lining
Much more details, feel free to contact.
