China Reinforcing Rebar Mesh Welding Machine

Views:9     Author:Site Editor     Publish Time: 2018-11-14      Origin:Site Inquire

China reinforcing rebar mesh welding machine main parameter are as following: Wire diameter:5-8mm;

Welding aperture:100*100-300*300mm
Width of mesh:1000mm(adjustable);

Number of electrodes:6(adjustable)
Welding speed:40times/min;

Rated voltage:380V 50HZ(customized)
Rated power:300KVA
Machine weight:2.0T
Overall dimension:6*1.8*1.7m(customized)

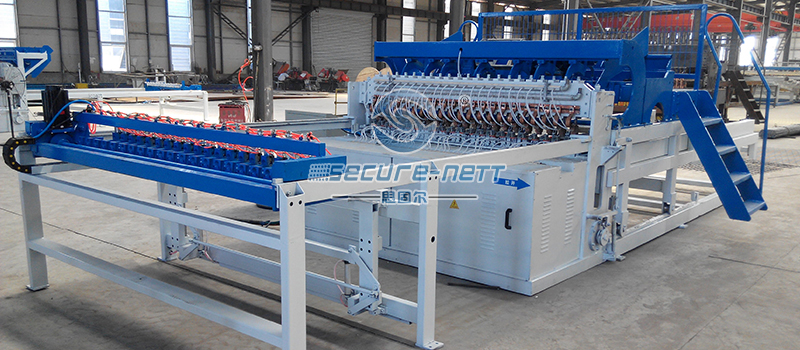

China steel reinforcing welded wire mesh panel machine plc control

Product description:
1.China reinforcing rebar mesh welding machine adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.
2.China reinforcing rebar mesh welding machine can press the panel tightly once , and weld by several times .On the same panel,this machine can weld 30 kinds of different size of mesh between weft and weft.That is the biggest advantages of this machine.
3.China reinforcing rebar mesh welding machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).
4.The mesh panel pulling part and the hopper is controled by the 16N stepper motor,and the steeper is working through the stepper motor drives.
5.Electrodes, the lower seat and copper platoon is copper material,and the electrode block is chromium zirconium copper material.
6.Wear silk part wear silk by bell mouth, make artificial device more simple, convenient, equipped with dovetail positioning device, effectively reduces the error of the diagonal mesh.


Auxiliary equipment

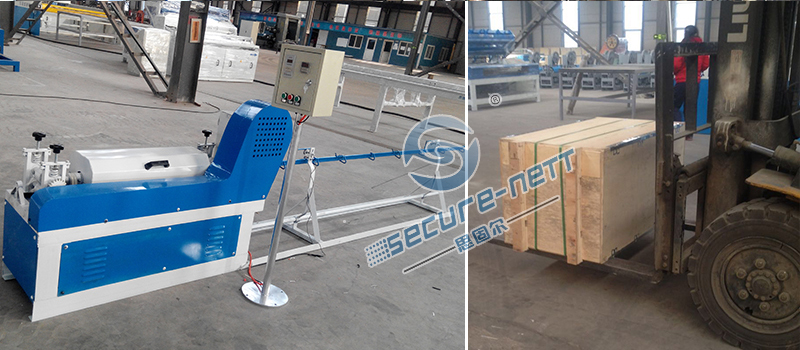

Straightening cutting machine

China steel reinforcing welded wire mesh panel machine plc control

Our Services
1 .Maintenance period:one year
2.If the buyers need, our technical staff can go to debug the machine and provide the training in 30 days after the machines arrival  at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accommodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the staff to your company. And the fees,such as round-trip
tickets, accommodation etc, are all in your account.





Package and shipping

workshop

Company

Hebei Secure-Nett Fence Facility Co.,Ltd.

§ Hebei Secure-Nett Fence Facility Co.,Ltd.founded in 2000,is located in Anping,famous as production base of wire mesh in China.

§ Now Secure-net has developed into an integrated entity with R&D, manufacturing and trading.

§ Main products of Secure-net are welding wire mesh machine,welded wire mesh machine,chain link fence machine,barbed wire machine,gabion mesh machine.
