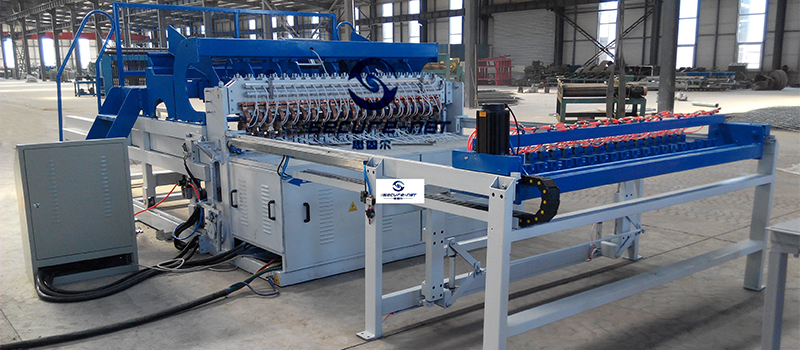

China Reinforced rebar mesh welded machine adopts power electronic synchronous control technology, the control system adopts PLC programmable controller, the operation interface adopts touch screen and button control, the working mode is simple, the operation is more intelligent and humanized.
1. The main machine of China Reinforced rebar mesh welded machine is frame structure, which makes the subject structure more solid, compact, stable in performance, continuous adjustable welding pressure, firm and beautiful welding spot.
2. The water-cooled welding transformer adopts a new type of welded mesh transformer to expand the welding wire diameter range;Professional design up and down motor block, low wear rate, and can be used on multiple sides.
3. The welding in China Reinforced rebar mesh welded machine adopts the method of primary compression and separate control feeding point, that is, when welding the same row of weft wires, the welding transformer shall be operated separately to reduce the capacity requirements of the power transformer and reduce the current impact.
4. The weft feeding mechanism is novel in structure and adopts the stepper motor to drive the disc device to automatically discharge the filling, which makes the weft placement more accurate.
5. The servo motor drives the pneumatic clamping device to make the mesh size more precise and standard;Continuous reciprocating drawing network can be used to produce extended size mesh.
6. The welding grid is diversified, and the diameter wire spacing can be adjusted for relevant parts. The spacing of weft wires can be controlled by PLC and adjusted without pole.
Technique parameters：
Wire diameter | 5.0-12.0mm | Voltage | AC380v 50HZ |
aperture | 100*100-300*300 | Electric capacity | 1820KVA |
Mesh width | 2500mm | Number of electrode | 26 |
Welding speed | 50 times/minute | Overall dimension | 15*3.6*2.5m |
Our Services
1 .Maintenance period:one year
2.If the buyers need, our technical staff can go to debug the machine and provide the training in 30 days after the machines arrival at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accommodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the staff to your company. And the fees,such as round-trip
tickets, accommodation etc, are all in your account.
Package and shipping
Company
Hebei Secure-Nett Fence Facility Co.,Ltd.
Hebei Secure-nett Co., Ltd. as China Reinforced rebar mesh welded machine exporter can provide energy efficient design, high performance, sturdy construction, longer functional life and user-friendly operation, these wire making machines are precisely engineered from quality assured materials such as stainless steel. For the purpose of engineering the offered wire making machines as per the industry set norms, our technicians and engineers make use of latest tools and equipment. As per the specifications provided by the customers, these wire making machines can be customized. We believe that our efficient and dexterous workforce is driving force behind our remarkable success in this domain. Hold expertise in its area of work, our workforce works in close coordination with each other to avoid any trouble in the workplace. To enhance and polish their skills in the most efficient manner, we provide our employees with regular training sessions.
Under the supervision of our manger, we have been able to cater to the precise needs of our valuable customers.
