China CNC Automatic Wire Straightening and Cutting Machine

Views:6     Author:Site Editor     Publish Time: 2018-12-02      Origin:Site Inquire

High speed plc control wire straightening and cutting machine is a kind of steel processing machinery, for straightening and cutting rebar wires.

The hydraulic steel wire straightening and cutting machine consists of straightening tube, pulling agency, cutting mechanism, steel positioning frame, whole framework, driving device and other components.

The motor is driven high speed via a belt. Then the straightening tube rotates at high speed. Wires are straighten after tube and rust on surface are removed. The motor is driven up by another two belts and gear box. On one hand, to drive two transport roller to realize wire’s forward movement. On the other hand, to drive crank wheel to realize hammer up and down. When wire is straightened to certain length, the hammer heat the top knife cutter and cut down the wire. When cut wire falls, knife returns back because of spring. Then it finally completes one cycle.

This cnc wire straightening and cutting machine is automatically controlled in high accuracy and working efficiency.

PLC-Control-Wire-Mesh-Fence-Welding-Machine2

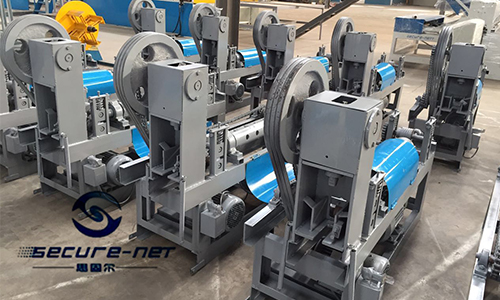

cnc wire straightening and cutting machine

Machine Parameter

Wire diameter

1.3-12mm

Cutting length

0.1-12m

Material suitable

Steel wire, rebar, alloy wire, copper wire, etc.

Work speed

30-40 m/min / 80-90m/min

Feeding wire motor

Share with straighten motor

Motor

0.75kw + 1.5kw

Size

2250 × 400 × 900mm

Net weight

100kg / customized

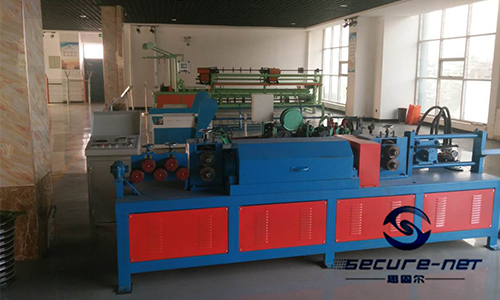

cnc wire straightening and cutting machine

Slitting Machine Application

Wire straightening and cutting machine can do prepared work for wire mesh welding machine. It is widely used in factory dealing with rebar wires and wire mesh. Also used in construction area.



Much more details, feel free to contact.
