China Animal Cage Welded Wire Mesh Machine In Roll

Views:7     Author:Site Editor     Publish Time: 2018-11-10      Origin:Site Inquire

Secure-nett is an excellent  manufacturer  of  wire mesh welding machinery. The Secure-nett wire mesh welding machines are well known  in the industry. This mesh welding systems are for the production of light welded mesh in rolls or panels, such as Cages for breeding and keeping animals; Mesh for cages;Light weight mesh or fence mesh;Transport containers;Floor pavement screens;Mesh boxes and containers;Plaster mesh;Baskets for gravel trench lining.

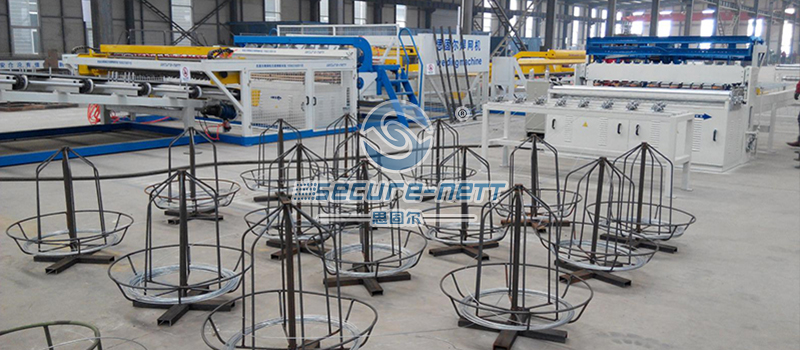

China Animal Cage Welded Wire Mesh Machine In Roll

Technical data

HWJX1200

HWJX1500

HWJX2000

 HWJX2500

Max mesh width

  ≤ 1200 mm

 ≤ 1500 m

 ≤2000 mm

≤ 2500 mm

Mesh length

according to client

according to client

according to client

according to client

Wire diameter

2.5–5.0mm

2.0–3.2mm

2.0–3.2mm

2.0–3.2mm

Number of electrodes

≤48

 ≤ 25

 ≤ 31

≤41

Line wire feeding

from coils

from coils

from coils

from coils

Cross wire feeding

pre-straighten,cut to length

pre-straighten,cut to length

pre-straighten,cut to length

pre-straighten,cut to length

Line wire space

≥25mm

  ≥25mm

  ≥25mm

  ≥25mm

 Cross wire space

  ≥25mm

  ≥25mm

  ≥25mm

  ≥25mm

 Control system

PLC

PLC

PLC

PLC

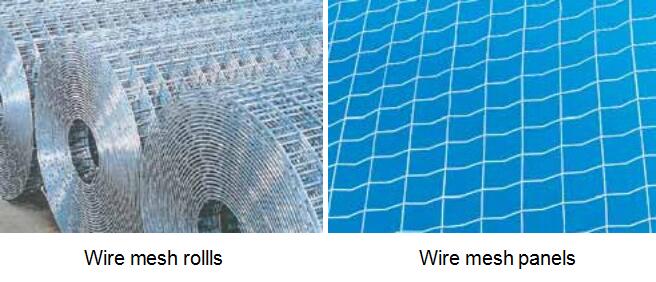

Final mesh

Final mesh
