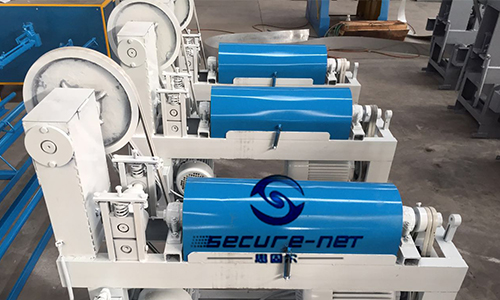

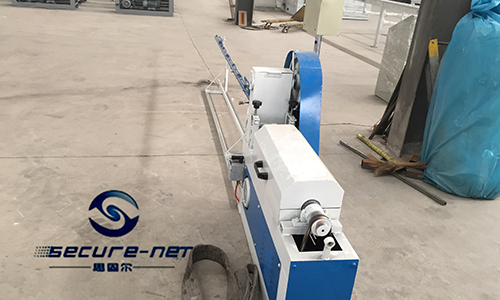

CNC automatic wire straightening and cutting machine is a kind of steel processing machinery, for straightening and cutting rebar wires.

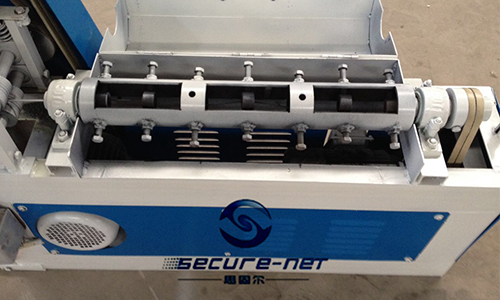

The computerized wire straightening and cutting machine consists of straightening tube, pulling agency, cutting mechanism, steel positioning frame, whole framework, driving device and other components.
The motor is driven high speed via a belt. Then the straightening tube rotates at high speed. Wires are straighten after tube and rust on surface are removed. The motor is driven up by another two belts and gear box. On one hand, to drive two transport roller to realize wire’s forward movement. On the other hand, to drive crank wheel to realize hammer up and down. When wire is straightened to certain length, the hammer heat the top knife cutter and cut down the wire. When cut wire falls, knife returns back because of spring. Then it finally completes one cycle.
This hydraulic steel wire straightening and cutting machine is automatically controlled in high accuracy and working efficiency.
Main Parameter of Wire Straightening and Slitting machine
Adjust straight speed:0-35m/min
Adjust straight electric power:1.5kw
Cutting electric power:0.75kw
Weight of machine:150-350kg
Application of Wire Straightening and Slitting machine
The wire straightening and slitting machine is used to straighten galvanized wire, black wire or rebar wire etc. And then cut it into the needed length. It can do a prepare work for the wire mesh welding machine. So it is widely accepted to the factory who is dealing wires and wire mesh. Also widely used in construction area.
