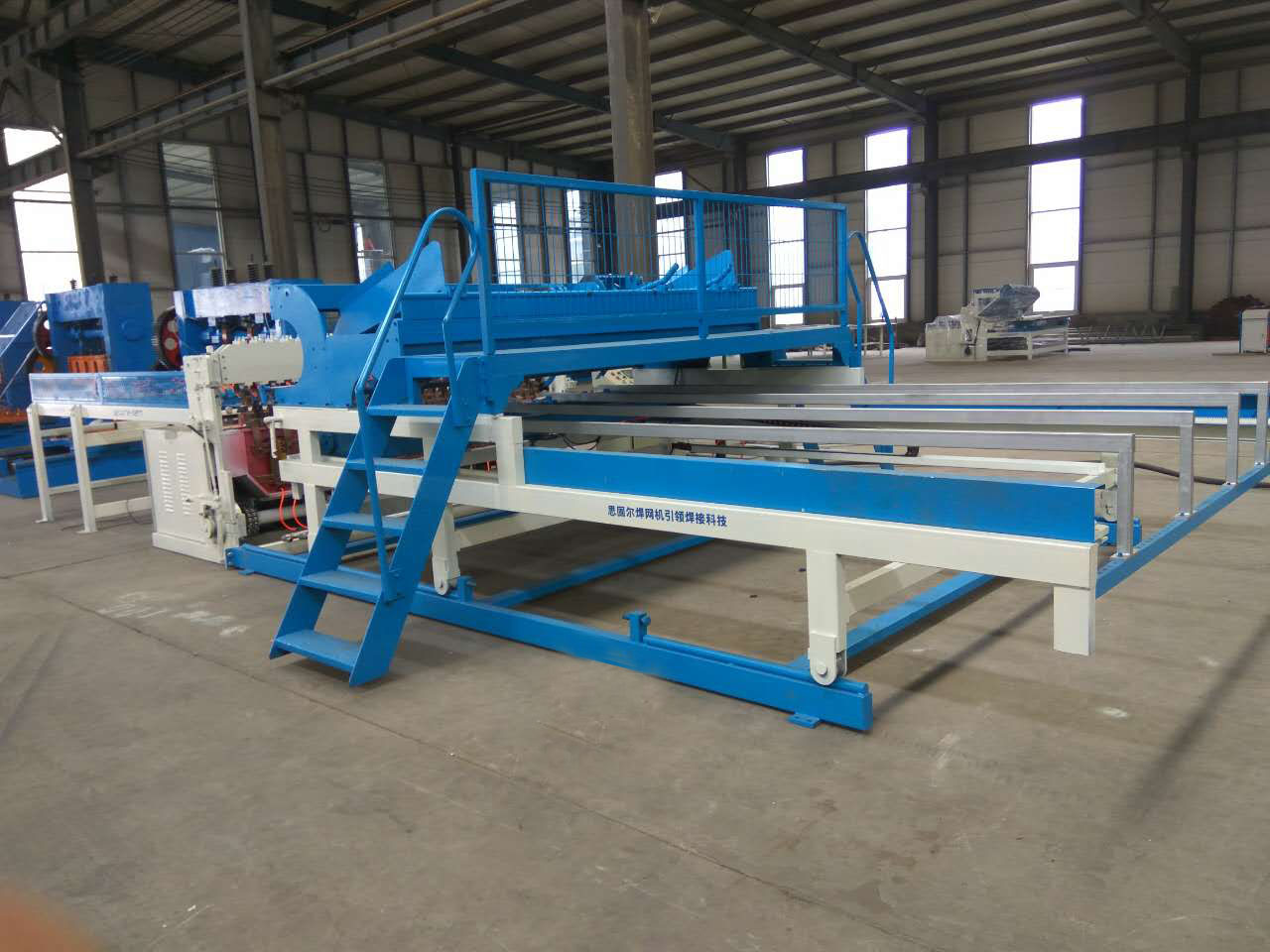

Reinforcing rebar electro-welded mesh machine
The reinforced mesh welding machine adopts synchronous control technology. Welding time and separate control welding are composed of PLC digital programming system. The input surface plate is a touch screen, and the operation is more intelligent and rational. It can be pressed at one time, welding in parts. Different sizes of mesh holes between cross can appear on the same network.
Parameter of this reinforcing rebar mesh welding machine:
Program | GJW-2000 | GJW-2500 | GJW-3300 |
No. of electrodes | 20 | 24 | 32 |
Max. Mesh width | 2000mm | 2500mm | 3300mm |
Wire diameter | 6-12mm | 6-12mm | 6-12mm |
Product length | 3-12m | 3-12m | 3-12m |
Cross wire space | 100-300mm | 100-300mm | 100-300mm |
Line wire space | 100-300mm | 100-300mm | 100-300mm |
Electric capacity | 1500KVA | 1700KVA | 2100KVA |
Work speed | 30-60times/min. | 30-60times/min. | 30-60times/min. |
Control system | PLC programmable controller | PLC programmable controller | PLC programmable controller |
Certificate
