PLC Reinforcing Concrete Wire Mesh Welding Machine

Views:2     Author:Site Editor     Publish Time: 2021-02-09      Origin:Site Inquire

PLC reinforcing fencing wire mesh welding machine, is also called plc control heavy duty rebar mesh welding machine. The cross wires are fallen from hopper automatically, driven by step motor. The line wires are threaded manually and fed automatically. The finished mesh is pulled by step motor, which ensures accuracy and improves productivity. The transformers and welding electrodes are both equipped with cold water cooling system, which reduces heat immediately and prolongs their service life. All these characteristics make reinforced rebar mesh welded machine an excellent equipment.

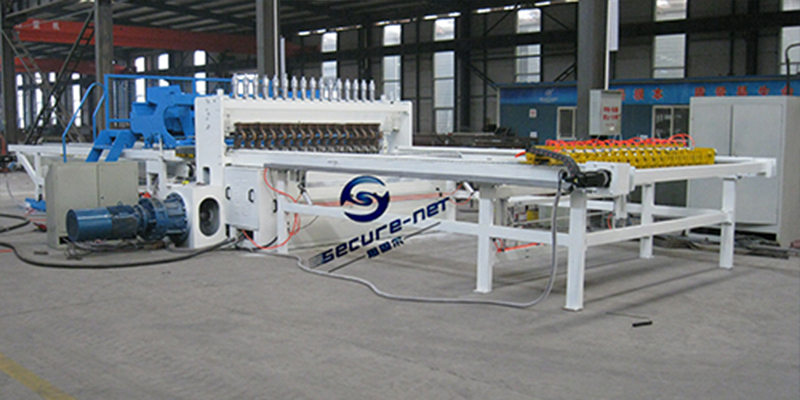

Low-carbon-Reinforcing-Rebar-Mesh-Welding-Machine

 Model

HWSB-2500

HWSB-3000

HWSB-2500A

 Wire diameter

3-8mm

3-8mm

5-12mm

 Welding width

≤2500mm

≤3000mm

≤2500mm

 Longitude wire space

100-300mm

100-300mm

100-300mm

 Cross wire space

Min.50mm

Min.50mm

Min.50mm

 Mesh length

Max.12000mm

Max.12000mm

Max.12000mm

 Wire feeding way

Pre-straightened, cut to length

 Welding speed

50-75times/min

50-75 times/min

40-65times

 Welding electrodes

24

31

24

 Welding transformers

150kva*6

150kva*8

150kva*12

 Machine size

8.4*3.4*1.6m

8.4*3.9*1.6m

8.4*5.5*2.1m

 Weight

5.2T

6.2T

8.5T

Our Service:

1. If the customer need, we can send our technical staff to the buyers’ factory to install the machine and providing the training in 15 days after the machines arrived the destination port.

2. Maintenance period: one year for whole machine except vulnerable parts.

3. Engineers overseas service is available. The number of technical persons: one technician per machine.
