Gabion mesh machine

Views:0     Author:Site Editor     Publish Time: 2019-04-23      Origin:Site Inquire

Gabion mesh machine


Application

Heavy-duty hexagonal mesh machine is a professional equipment for producing regular hexagonal mesh. Its products are widely used in petroleum, construction, aquaculture, chemical industry, heating pipeline and other pipeline wrapping network, and can also be used for fencing, residential landscape protection, etc. At the same time, hexagonal mesh can also be used to make stone cages, which are widely used to protect and support seawalls, hillsides, roads, bridges, reservoirs and other civil engineering. It is a good material for flood control and flood control.

Characteristic

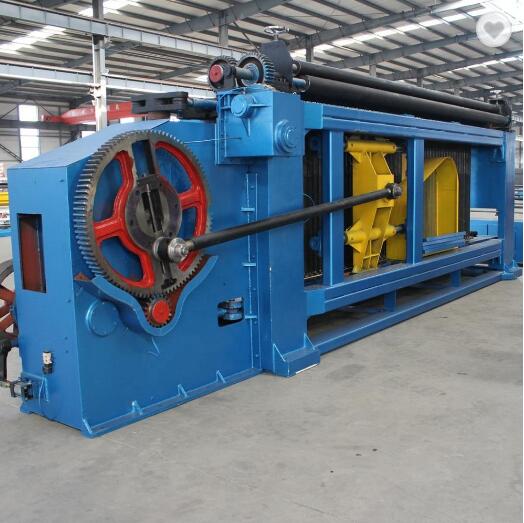

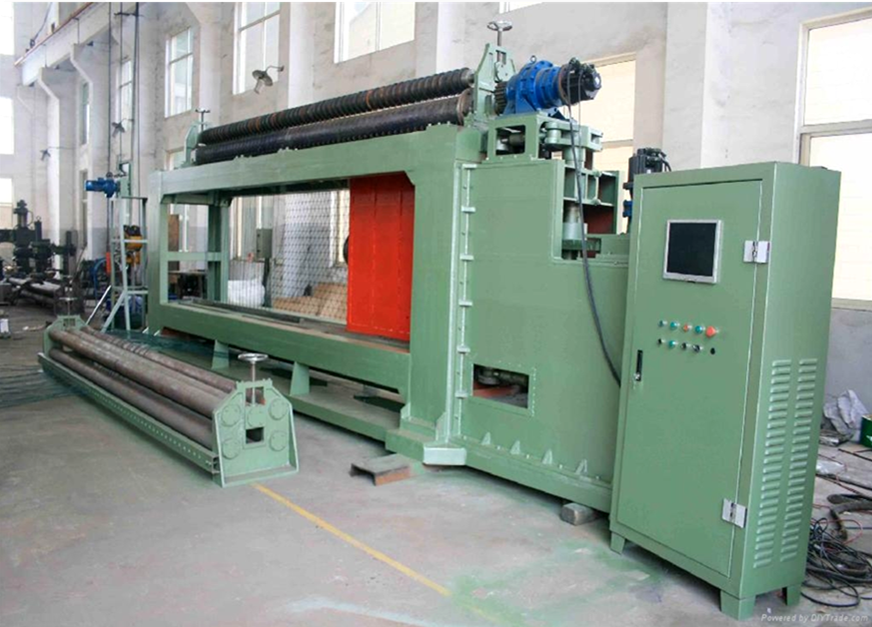

The heavy-duty hexagonal net knitting machine is controlled by PLC automatically. It has the characteristics of smooth operation, low noise and high efficiency. It is an ideal machine for producing hexagonal net with large size, wide door width and thick silk diameter


3_副本   7Z11KEDST8Z$(R(ZI%EN8YM

Specifications(mm) Maximum net width(mm) Wire diameter(mm) kinks-model Main engine speed power(KW)

speed (times/min)

Area covered(m) weight(T)
60*80 2300 2.8 double 25 11 25 165 13
3300 2.8 double 25 15 25 165 14
4300 2.8 double 25 22 25 165 15
80*100 2300 3.0 double 25 11 25 195 13
3300 3.0 double 25 15 25 195 14
4300 3.0 double 25 22 25 195 15
100*120 2300 3.2 double 25 11 25 225 13
3300 3.2 double 25 15 25 225 14
4300 3.2 double 25 22 25 225 15
