Environment Requirements of Welded Wire Mesh Panel Machine for Fence

Views:4     Author:Site Editor     Publish Time: 2019-10-08      Origin:Site Inquire

004

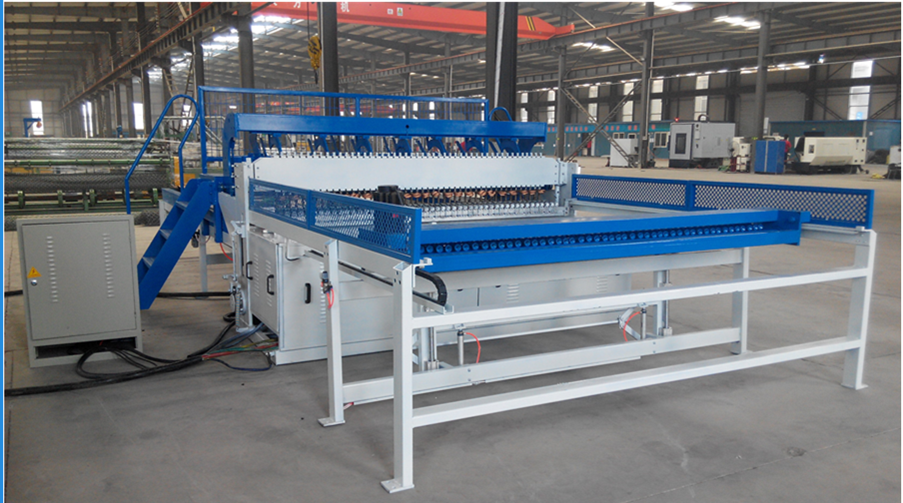

Welded wire mesh panel machine for fence adopts synchronous control technology. The welding time and time control time consists of a digital programming system. The device features one stamping, two soldering and strong solder joints. When the fence mesh welding machine is welded, the punching mechanism enters the welding stage according to the program requirements. The integrated control system of the MCU is selected as the welding controller of the mesh welding machine. The control parameters of each group can be adjusted arbitrarily through the imported digital buttons. There are two sets of control parameters and dual current double-foot switches, which can complete different specifications of welding. On the same network, holes of different sizes can also appear between the weft and the weft. The welded wire mesh panel machine for fence controller has preload, continuous current regulation and network voltage fluctuation compensation.


Environment Requirements of Welded Wire Mesh Panel Machine for Fence

1) Ambient temperature of the fence welding machine: 5~40°C

2) Air relative humidity of the fence welding machine: 90% at 20°C and 50% at 40°C;

3) The height of the fence welding machine should be less than 2000 meters;

4) The fence mesh welding machine is away from the equipment with large oscillation;

5) The dust, acid, corrosive gas or substance in the air around the fence welding machine does not exceed the normal content;

6) The fence welding machine shall not be used in the open air, and shall be used in the factory building where the person is guarded by the factory gate;

7) The fence mesh welding machine is away from strong magnetic fields.

8) Fence welding machine power: AC 380V 50HZ advocates the use of independent 250-600KVA transformer, spacing equipment ≤ 50m cable selection of 180 square millimeter copper wire.

9) Fence mesh welding machine water: supply clean and neutral circulating cooling water, the inlet water temperature is not more than 40 ° C in summer (refer to the cooling pool volume is not less than 2 cubic meters), 0.2 ≤ pressure ≤ 0.3MPa

10) Fence welding machine gas: screw air compressor with supply pressure ≥0.8MPa, gas production ≥3.4m3/min and pressure ≥0.8MPa, capacity ≥2m3/min gas storage tank, it is recommended to use the matching cold Dry machine.

11) Fence mesh welding machine 3-6mm steel bar straightening and cutting machine and cold-rolled ribbed equipment.
