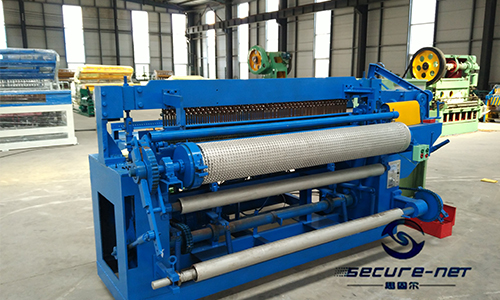

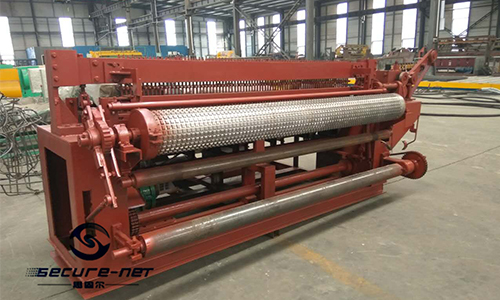

The hot dipped galvanized welded wire mesh roll machine is a fully automatic type. The cross wire and line wire are both feeding from coil automatically. Finished mesh rolls and cut automatically after reaching needed length. High-speed roll galvanized welded wire mesh machine for construction adopts several times welding technology. This advantage of plc digital control welded wire mesh roll machine reduces load of power, saves energy and reach high efficiency.
Width(mm) | Mesh size（Inch） | Diameter (mm) | Speed (rows/min) | Weight(T) | Dimension(m) |
914.4 | 1/4-1/2 | 0.4-0.65 | 75 | 1.5 | 2.3*1.3*1.4 |
1524 | 3/4 | 0.6-1.4 | 120 | 2.5 | 3.0*1.75*1.65 |
1524 | 1-4 | 1.2-1.5 | 120 | 2.5 | 3.0*1.75*1.65 |
2133.6 | 1/2-4 | 0.65-2.0 | 80 | 3.5 | 3.0*1.75*1.65 |
Package and shipping

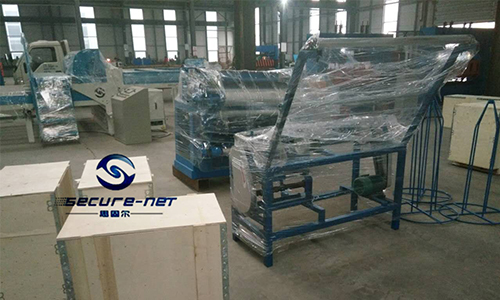

1. The machine and spare parts are packaged by plastic film and carton box.
2. We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the machines away from unexpected damages. We ensure that clients will get their satisfying machines.
Much more details, feel free to contact.
