Barbed wire making machine

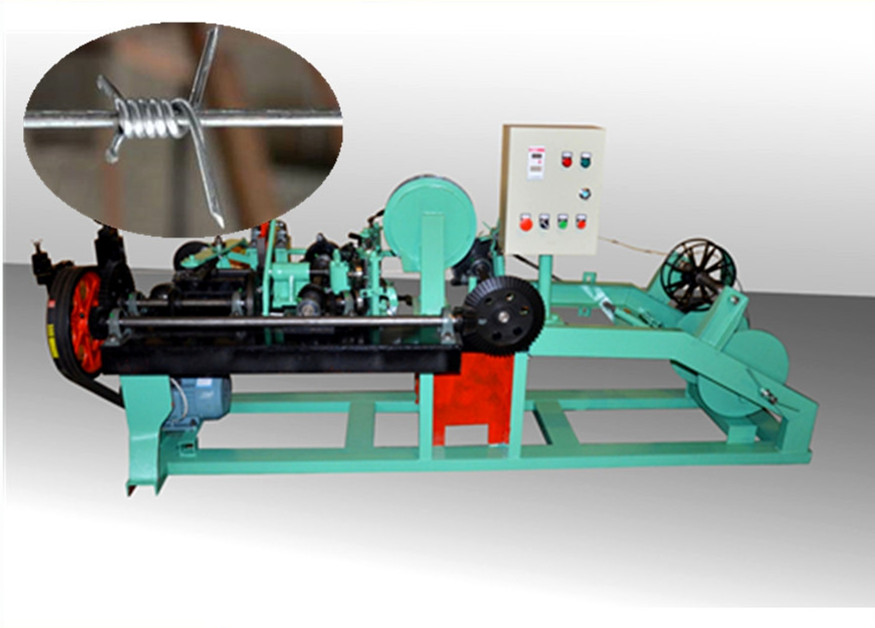

1.Single strand rope pricket
The single strand gill wire mesh machine is composed of two parts, winding and winding. It is equipped with three feeding trays. The machine operates smoothly, has low noise, high production safety, low energy consumption and high production efficiency, and adopts advanced electronic counting control.
| Project | Basic parameters |
| Motor | 3KW |
| Spindle speed | 402turn /min |
| Speed of coiling rope | 470turn/min |
| Rope pulling speed | 134 turn/min |
| Rotary speed of rope harvesting disc | 30-255turn/min |
| Host part | 1900X1300X980 mm |

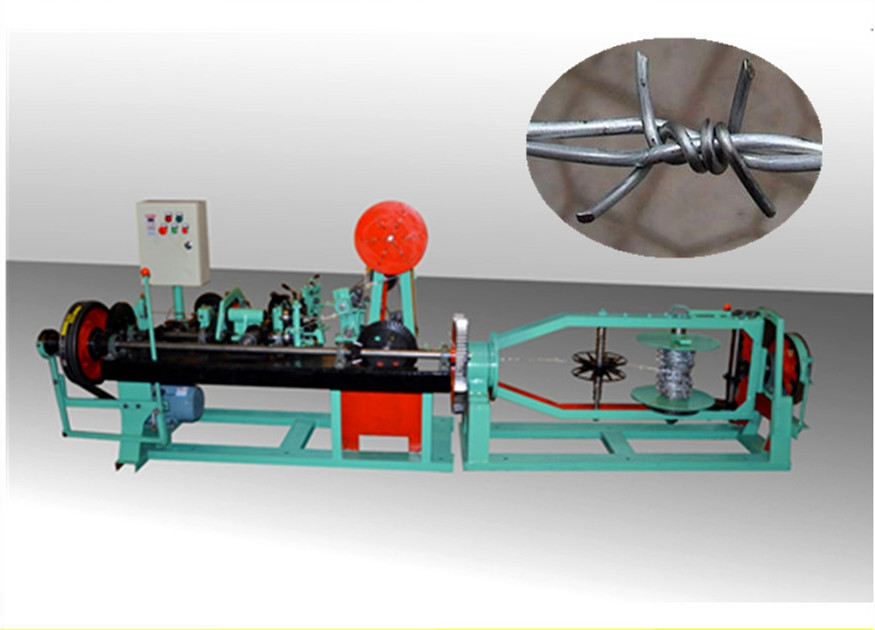

2.Double strand gill wire mesh machine
The machine consists of two parts, winding and winding, twisting, and four feeding trays. The parts of the machine work harmoniously. The machine is mainly suitable for producing various multi-strand wire mesh machines. The material used should be stable, and the operation should be flexible and reliable.
| Project | Basic parameters |
| Motor | 3 KW |
| Spindle speed | 402Turn/min |
| Speed of coiling rope | 470 Turn/min |
| Rope pulling speed | 134 Turn/min |
| Rotary speed of rope harvesting disc | 30-255 Turn/min |
| Host part | 1900X1300X980mm |
| Rope harvesting part | 1800X750X750 mm |

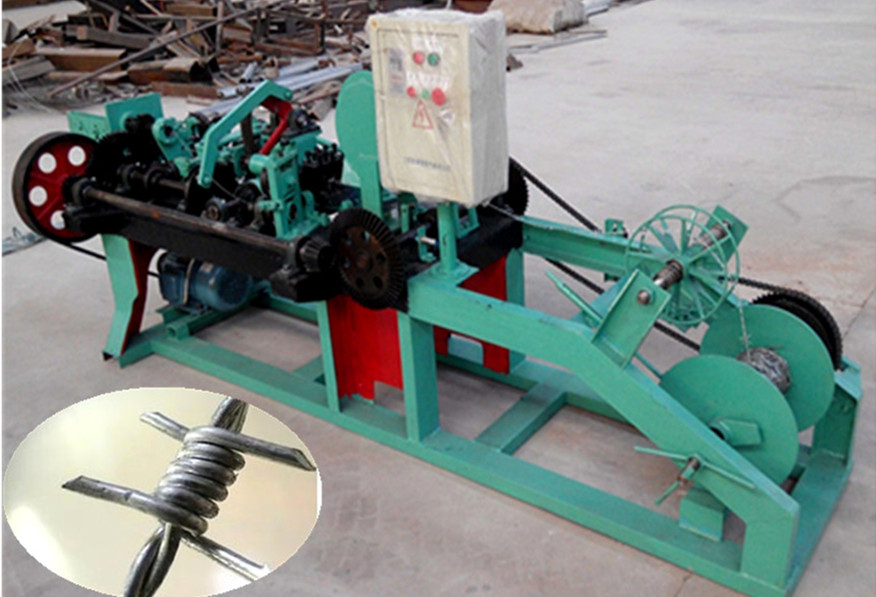

3.Positive and negative twisting rope machine
The positive and negative twisting wire mesh machine is composed of two parts: positive and negative twisting, winding and friction wire harvesting, and is equipped with four wire harvesters.
| Project | Basic parameters |
| Motor | 2.2 KW |
| Spindle speed | 357 r/min |
| Rope pulling speed | 125Time /min |
| Rotary speed of rope harvesting disc | Friction charging |
| Theoretical output | 50 Kg/h |
| Host Part Size | 1900X1300X980mm |
| Receiving rope part size | 1300X800X700 mm |
