Automatic building mesh welding machine

Views:0     Author:Site Editor     Publish Time: 2019-05-06      Origin:Site Inquire

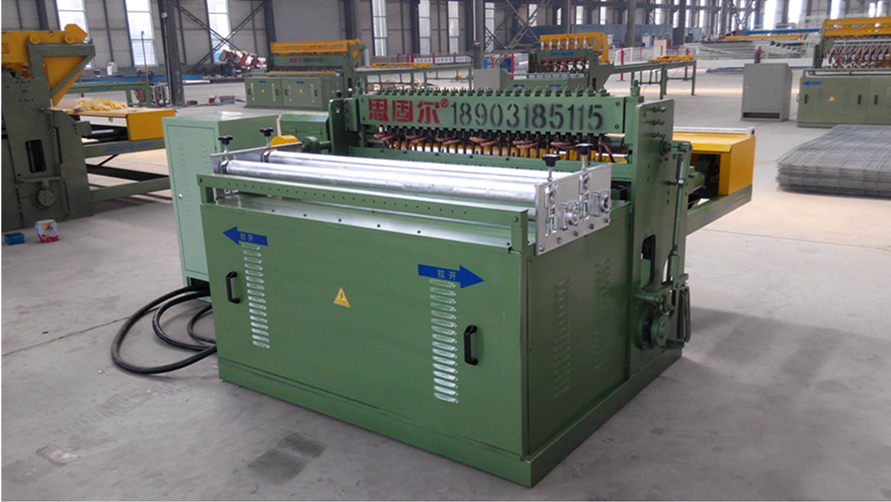

Automatic building mesh welding machine

The automatic building mesh welding machine adopts power electronic synchronous control technology. The welding time and separate control welding time are composed of digital integrated sliding circuit. The control precision is high, the performance is stable, the solder joint is firm, and there is no burn mark. The welding speed is fast, and the operation is simple and easy to learn. Weft wire needs to be straightened and cut off by straightening machine and put into the blanking mechanism. The mechanism is controlled by stepping motor, which automatically takes material from hopper and blanks evenly and accurately. The edges of the mesh are neat when the wire is pulled out from the cyclone without cutting. Elastic tie rod and mesh positioning device are used in the drawing system, which makes mesh fine-tuning easy, mesh size precision high, and welding wire diameter and aperture can be adjusted arbitrarily in the range.

004  003


Application

It can be used in the production and manufacture of Shule plate net, fence net, floor casting roof net, geothermal net, seedbed net, flower room net and other products.

Number of electrodes25
Mesh width

<1200,1200mm

Wire diameter

1.5-2.4mm

Cross wire space

50-200mm

Line wire space50-200mm
Electric capacity

125-315KVA

Work speed40-80times/min
Control systemSCM
