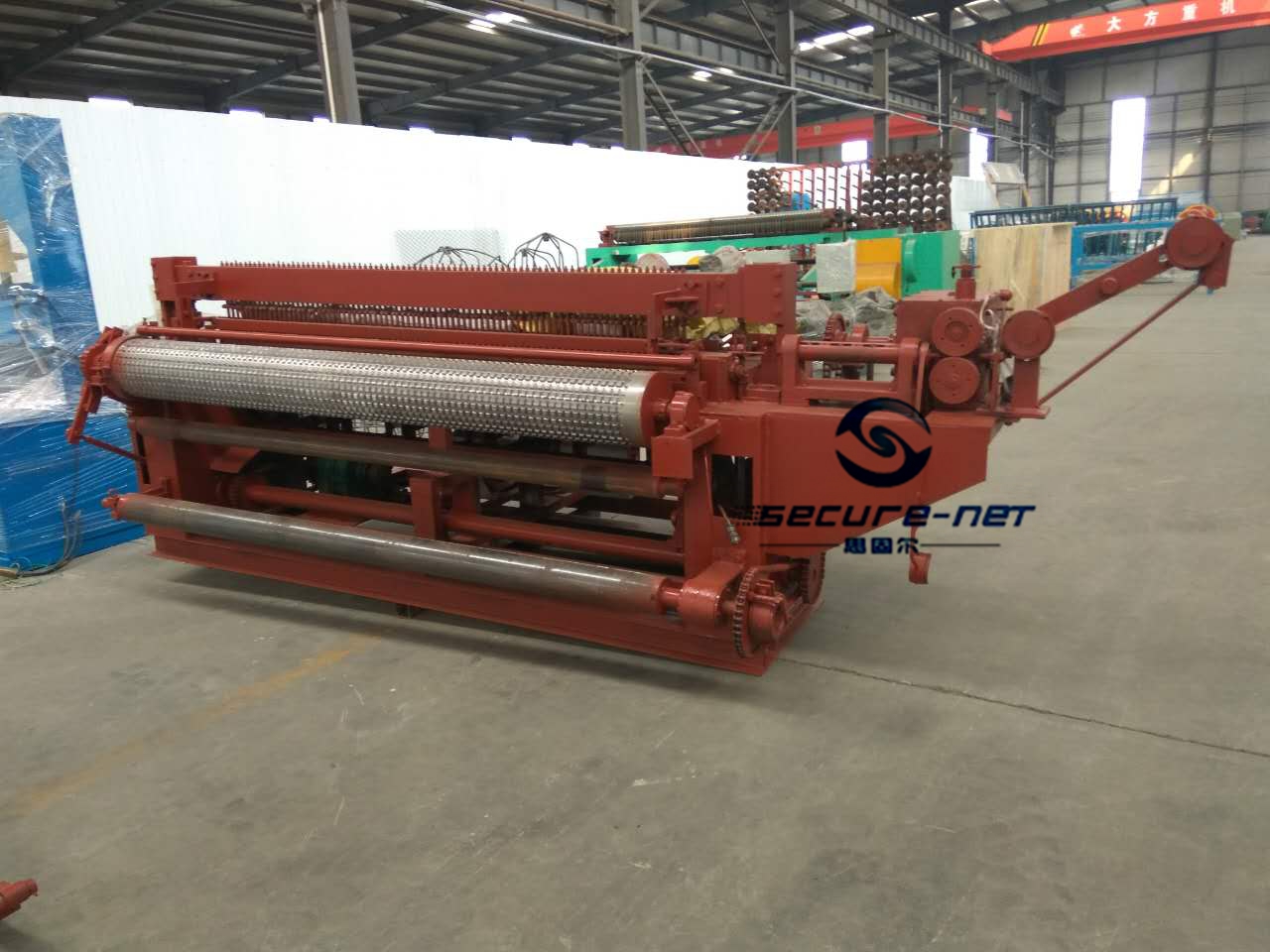

The machine is for welding plaster wire mesh in rolls. This welding machine has a good design, low noise, simple and stable operation. Longitudinal and transversal wire are feeding from coils. Raw materials can be low carbon steel wire or galvanized wire.

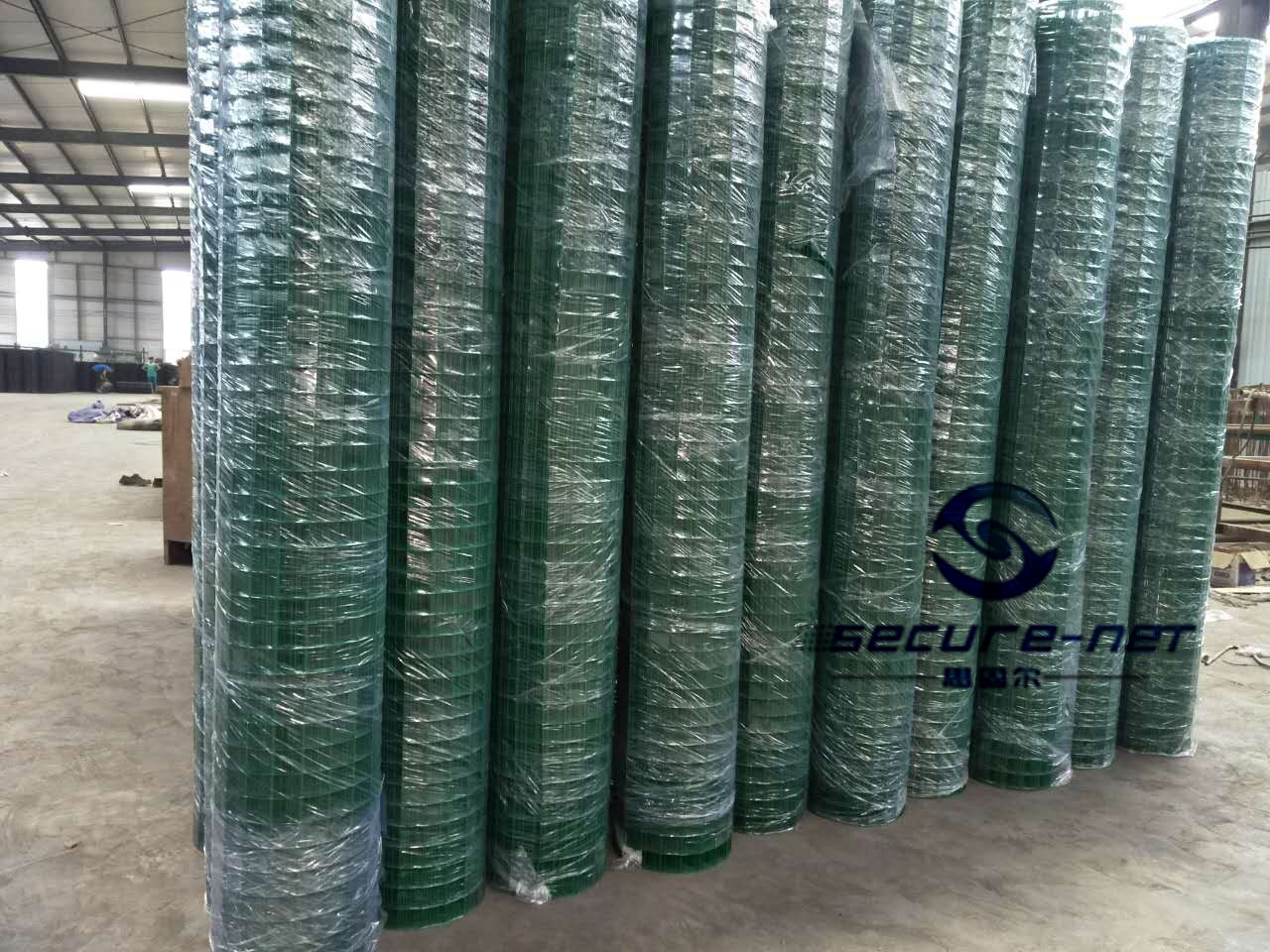

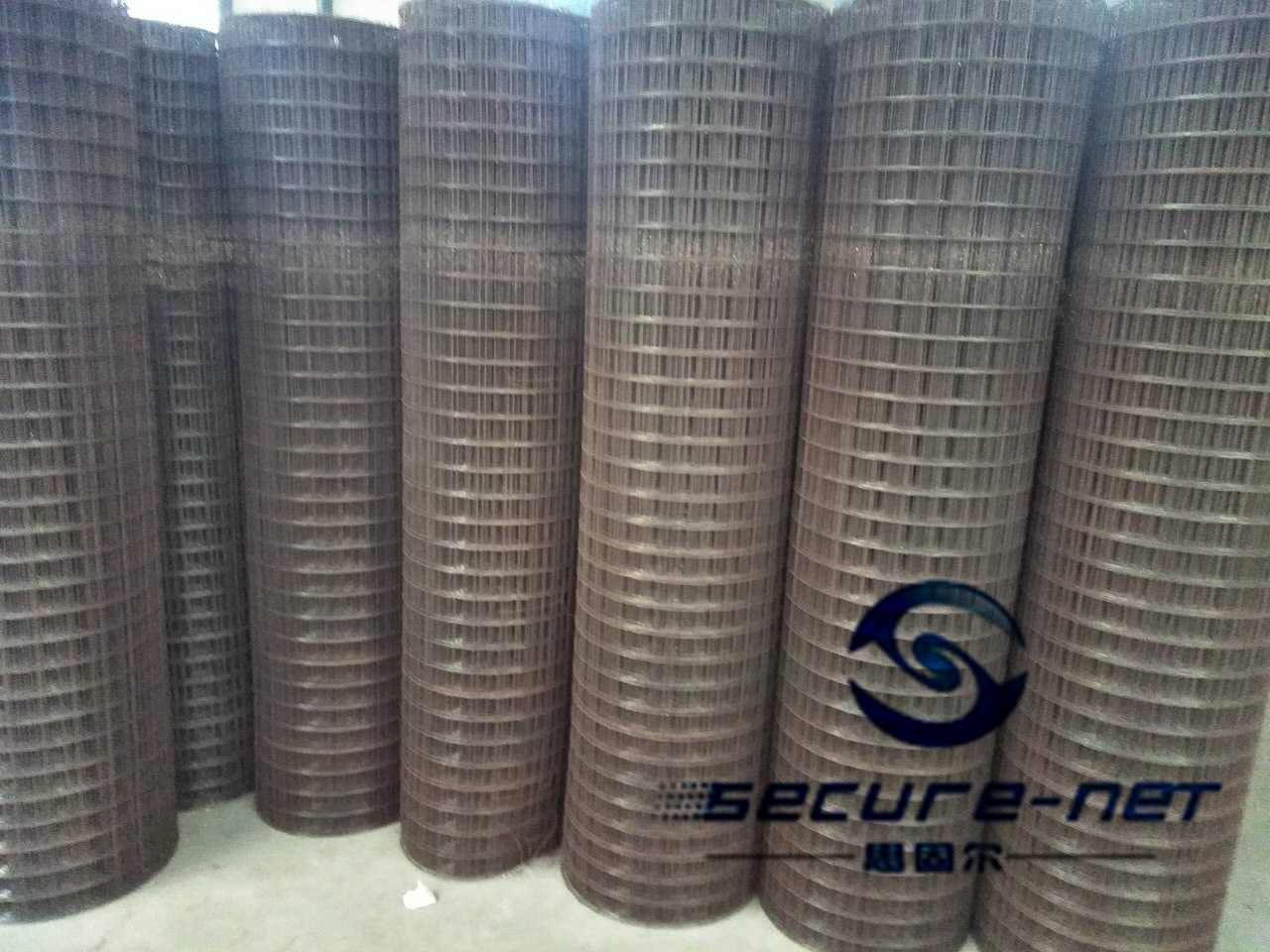

The mesh size is precise, minimum mesh from 1/4 inch to 1 inch. The mesh width is from 3 feet (914mm) to 7 feet (2134 mm). The length of mesh roll is up to 100m. The grid is immediately rolled up. The machine operates automatically and is serviced by one operator.
SGR-DHW-1 | SGR-DHW-2 | SGR-DHW-3 | SGR-DHW-4 | |
Wire diameter | 0.4-0.65mm | 0.6-1.4mm | 0.6-1.8mm | 1.2-2.5mm |
Net width | 914.4mm; 1000mm | 1219mm(4feet); 1524mm(5feet) | 1219mm(4feet); 1524mm(5feet) | 1919.2mm;1524mm; 1828.8mm;2133.6mm |
Mesh | 6.35-12.7mm (1/4″-1/2″) | 19.05mm (3/4″) | 12.7-110.6mm (1/2″-4″) | 25.4-110.6mm (1″-4″) |
Voltage | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz |
Motor power | 2.2Kw | 2.2Kw | 2.2Kw | 4.0Kw |
Welding speed | 75 times/min | 120 times/min | 120 times/min | 80 times/min |
Transformers | 50Kva*3 | 65Kva*5 | 65Kva*4/65Kva*5 | 65Kva*4/65Kva*5 |
Overall dimension | 2.3*1.3*1.4m | 3.0*1.75*1.65m | 2.0*1.50*1.6m 3.0*1.75*1.65m | 2.0*1.50*1.6m 3.0*1.75*1.65m |
Weight | 1.5 T | 2.5 T | 2.0 T;2.5 T | 2.0 T;2.5 T;3.0 T;3.5 T |
