Animal cages mesh machine

Views: 1     Author: Site Editor     Publish Time: 2019-04-22      Origin: Site Inquire

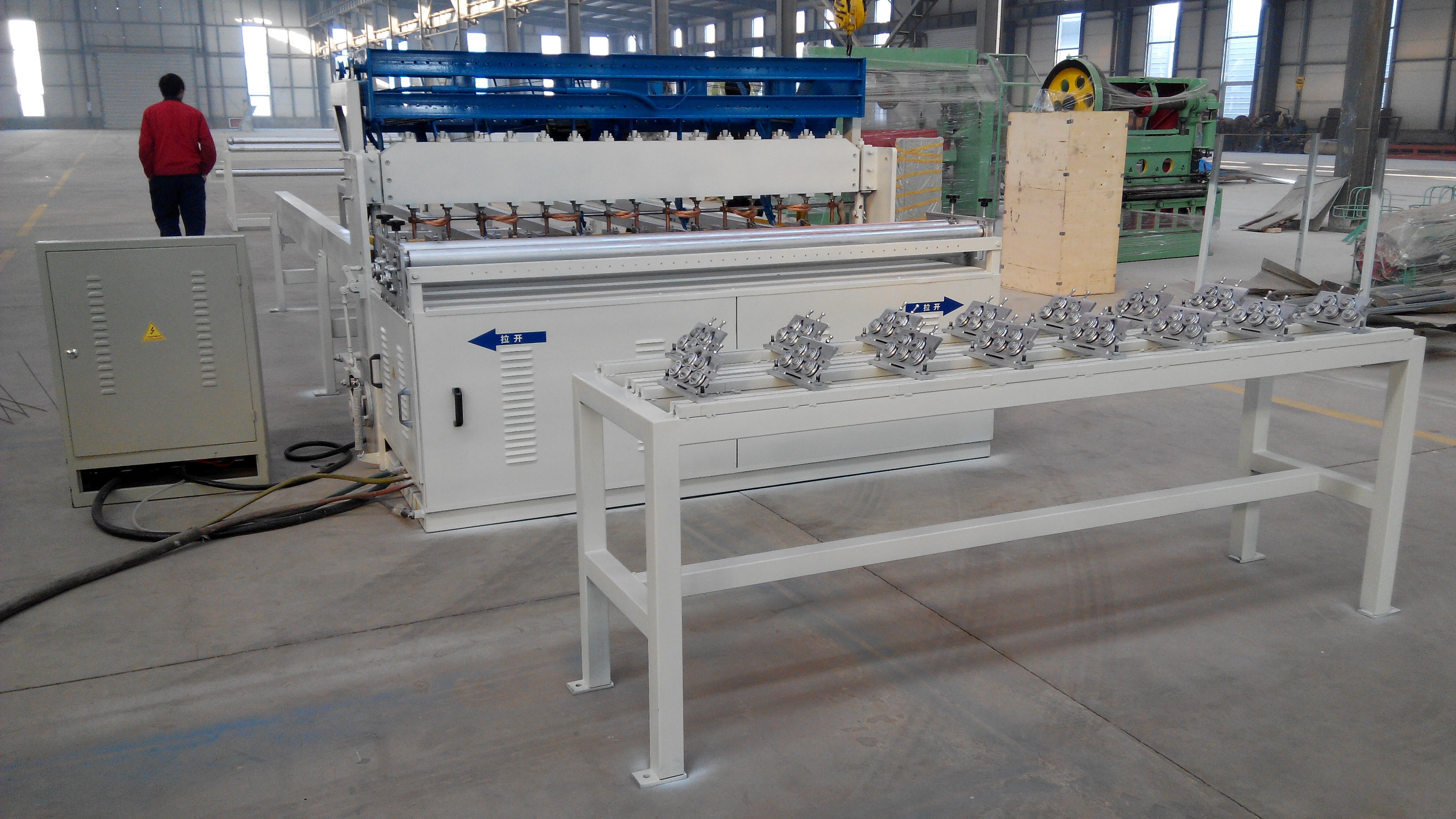

Animal mesh welding machine


The automatic chicken cage mesh welding machine adopts power electronic synchronization technology. The time of separate control welding and welding is controlled by digital circuit. The control precision is high, the performance is stable, the solder joint is firm and there is no burn mark.


Weft yarn should be cut off by straightening machine and put into feeding mechanism.


The mechanism is controlled by a stepping motor, which automatically takes material from hopper and drops it evenly and accurately. The edges of the mesh are pulled out by wire from the cyclone without cutting.


The drawing system is controlled by servo motor, which not only improves the accuracy of mesh size, but also ensures the adjustability of the distance between the longitudinal wire and the weft wire.


The automatic cage net welding machine has fast welding speed and can be operated by only two persons. It is easy to learn. Products can be rolled or produced.

IMG_20141122_085502 IMG_20141121_140951

放线盘2_副本_副本 IMG_20141121_141157


Number of electrodes 16-30
Max mesh width

1200-1600mm

Wire diameter 2.0-3.2mm
Product length

continuous

Cross wire space

20-200mm

Line wire space

20-200mm

Electric capacity

300-400KVA

Work speed

40-60times/min

Control system

PLC programmable controller
