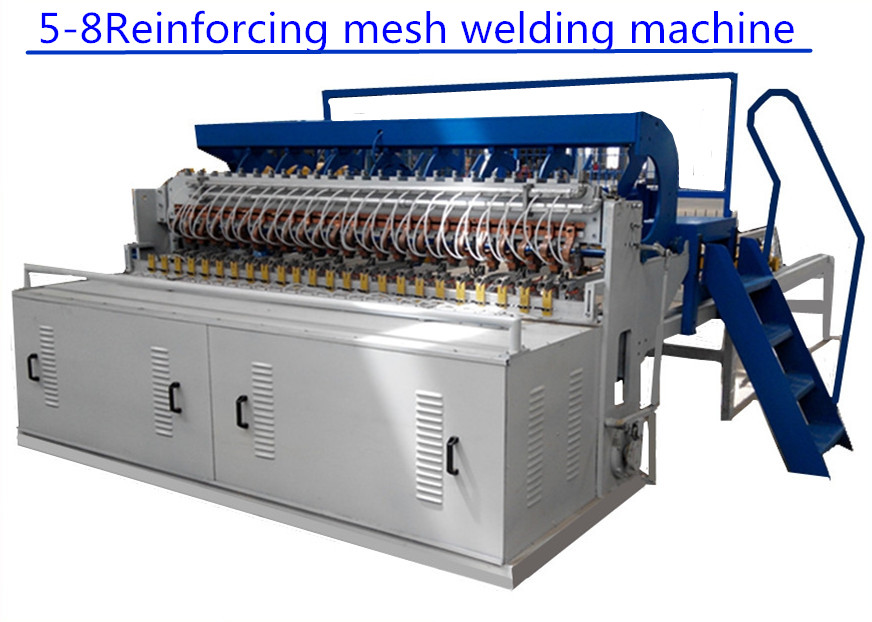

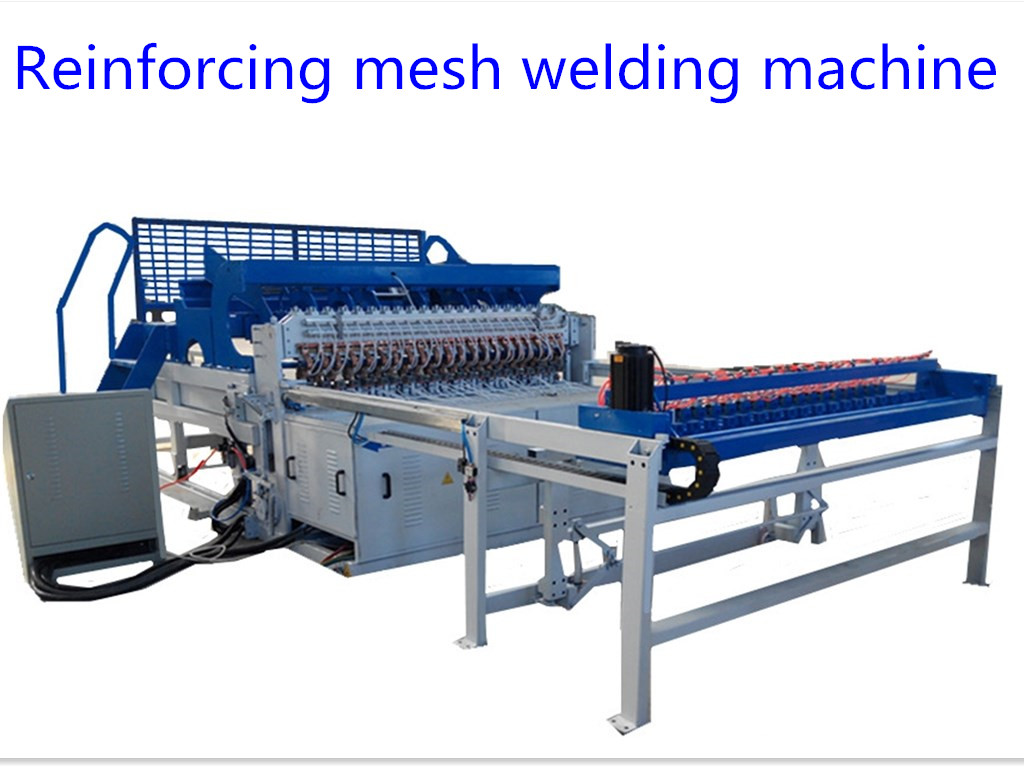

6-12mm reinforcement mesh welding machine
Definition
Welded steel mesh is a mesh of longitudinal and transverse steel bars arranged at a certain distance and welded together at right angles and all intersections.
welding technique
Special GWC welding machine is used for welding. The welding procedure is automatically controlled by computer. The welding mesh hole is uniform, the welding quality is good, and the mechanical properties of steel bars before and after welding are almost unchanged.
Advantage
1.Improving the Quality of Reinforcement Engineering
2.Improving construction speed
3.Strengthen crack resistance of concrete
4.It has better comprehensive economic benefits.
| 6-12mm Automatic reinforcement mesh welding machine | 6-12mm Reinforcing mesh welding machine | 5-8mm Reinforcing mesh welding machine | 5-8mm Reinforcing mesh welding machine | |
| Number of electrodes | 20-32 | 20-32 | 16-26 | 16-26 |
| Max mesh width | <3300mm,=3300mm | <3300mm,=3300mm | 1500-2500mm | 1500-2500mm |
| Wire diameter | 6-12mm | 6-12mm | 3-12mm | 3-12mm |
| Product length | 3-12m | 3-6m | 100-300mm | 100-300mm |
| Cross wire space | 100-300mm | 100-300mm | 100-300mm | 100-300mm |
| Line wire space | 100-300mm | 100-300mm | 30-50times/min | 30-50times/min |
| Electric capacity | 1500-2100KVA | 1500-2100KVA | 700-1300KVA | 650-1250KVA |
| Work speed | 30-60times/min | 20-45times/min | 30-50times/min | 30-50times/min |
| Control system | PLC programmable controller | PLC programmable controller | PLC programmable controller | PLC programmable controller |
