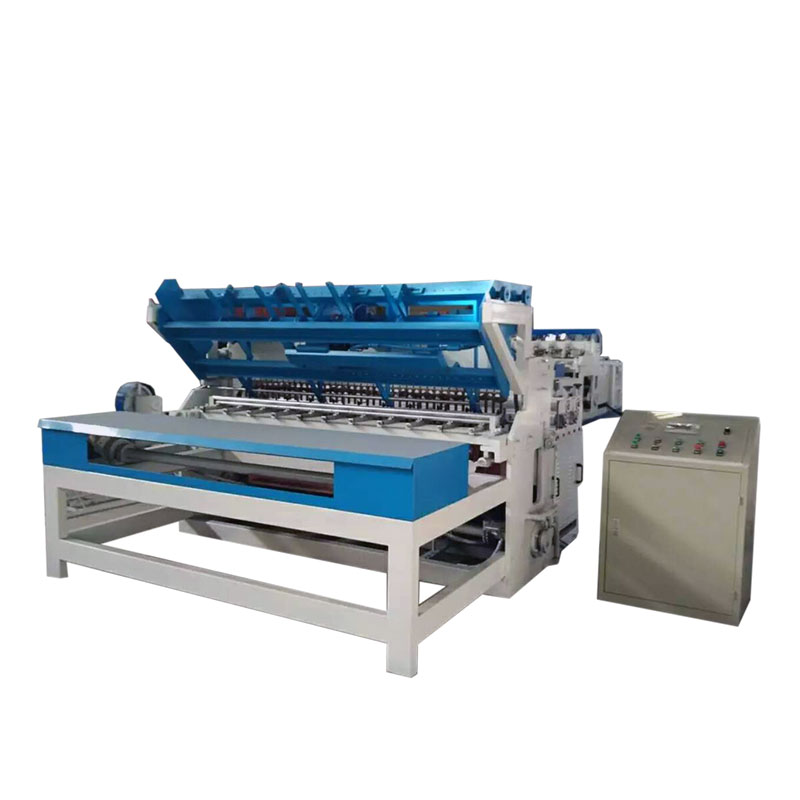

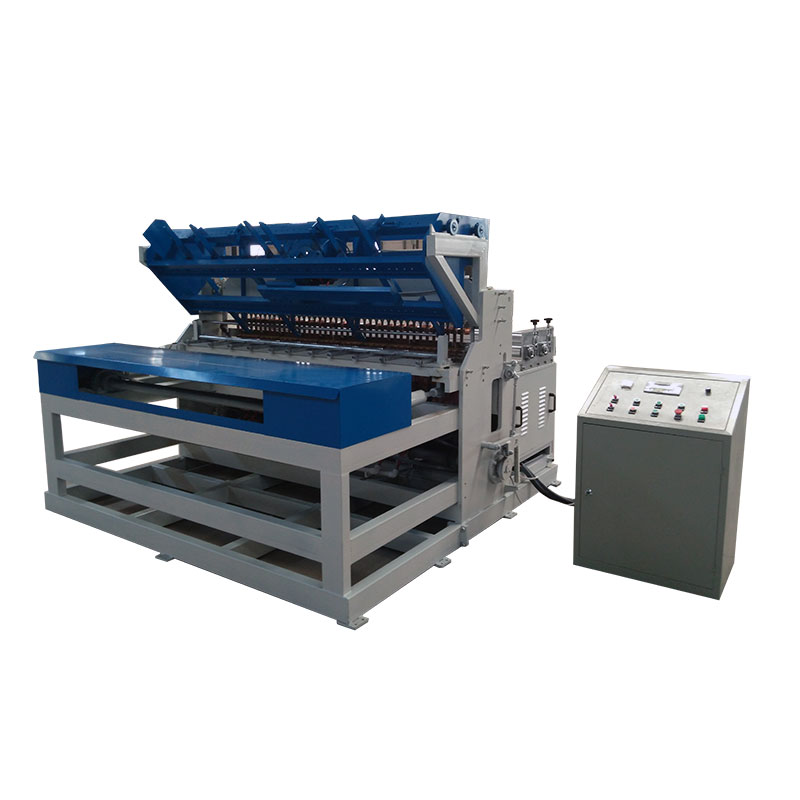

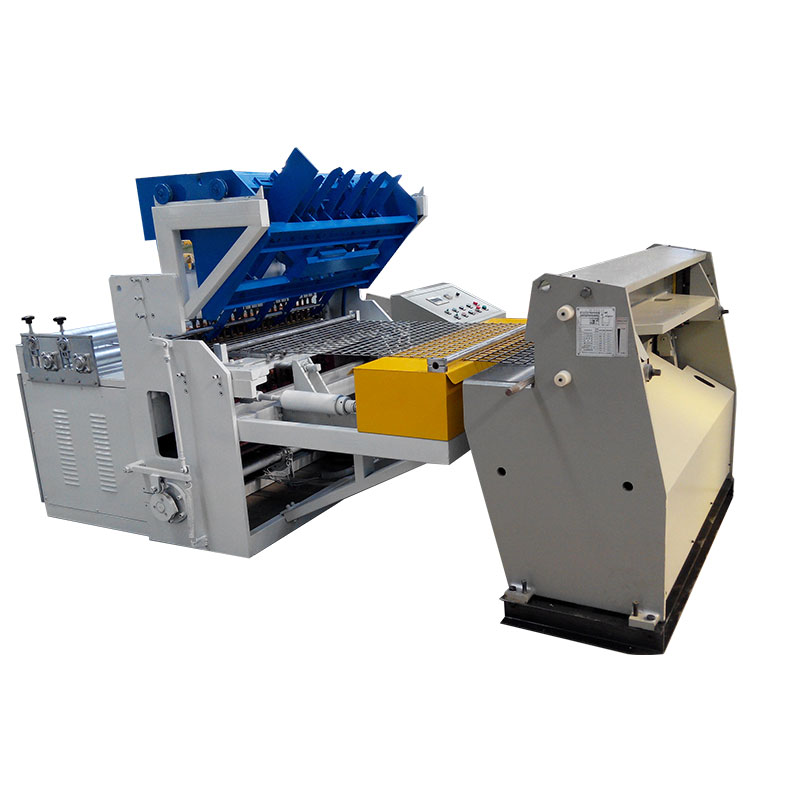

Construction Wire Mesh Welding Machine introduction:
Construction wire mesh welding machine adopts electrical and electronic synchronous control technique. Controlled by PLC, welding time and sub-control are accurate.
Two kinds of input methods, touch screen and keyboard, make operation more intelligentize and reasonable.
Cross wire drops from hopper automatically. Dropping positon is accurate.
Line wires feed from coils. High-speed roller type straightening machine made line wires straighten.
Mesh pulling is driven by the elastic bars and grid positioning device. It makes the grid size easily to fine-tuning. The mesh size is in high precision and the welding aperture can be adjusted freely within the range.

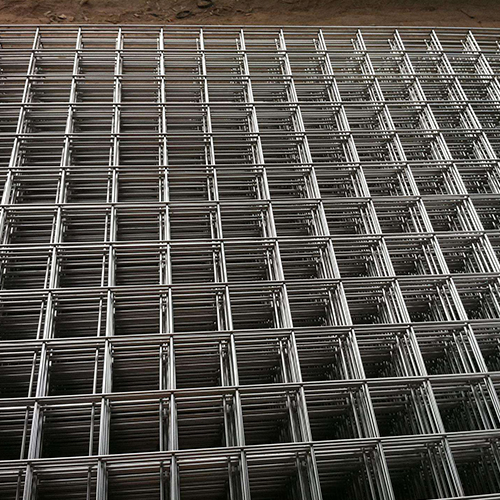

Construction Wire Mesh Welding Machine Final mesh product:
Welded roll mesh or mesh sheet.
Construction Wire Mesh Welding Machine application:
Construction wire mesh welding machine is to produce coal mine mesh and construction mesh.
Construction Wire Mesh Welding Machine Main parameter:
Welding wire diameter | 2.0-5.0mm | Welding mesh width | ≤2500mm / customized |
Line wire space | 50-200mm | Cross wire space | 50-200mm |
Line wire feed | Coil | Cross wire feed | Pre straighten, cut to length |
Electrodes no. | 48 | Welding speed | 40-60 times/min |
Rated voltage | 380V 3Ph 50Hz / customized | Control system | PLC |
 |  |
Construction Wire Mesh Welding Machine introduction:
Construction wire mesh welding machine adopts electrical and electronic synchronous control technique. Controlled by PLC, welding time and sub-control are accurate.
Two kinds of input methods, touch screen and keyboard, make operation more intelligentize and reasonable.
Cross wire drops from hopper automatically. Dropping positon is accurate.
Line wires feed from coils. High-speed roller type straightening machine made line wires straighten.
Mesh pulling is driven by the elastic bars and grid positioning device. It makes the grid size easily to fine-tuning. The mesh size is in high precision and the welding aperture can be adjusted freely within the range.
Construction Wire Mesh Welding Machine Final mesh product:
Welded roll mesh or mesh sheet.
Construction Wire Mesh Welding Machine application:
Construction wire mesh welding machine is to produce coal mine mesh and construction mesh.
Construction Wire Mesh Welding Machine Main parameter:
Welding wire diameter | 2.0-5.0mm | Welding mesh width | ≤2500mm / customized |
Line wire space | 50-200mm | Cross wire space | 50-200mm |
Line wire feed | Coil | Cross wire feed | Pre straighten, cut to length |
Electrodes no. | 48 | Welding speed | 40-60 times/min |
Rated voltage | 380V 3Ph 50Hz / customized | Control system | PLC |
| |
